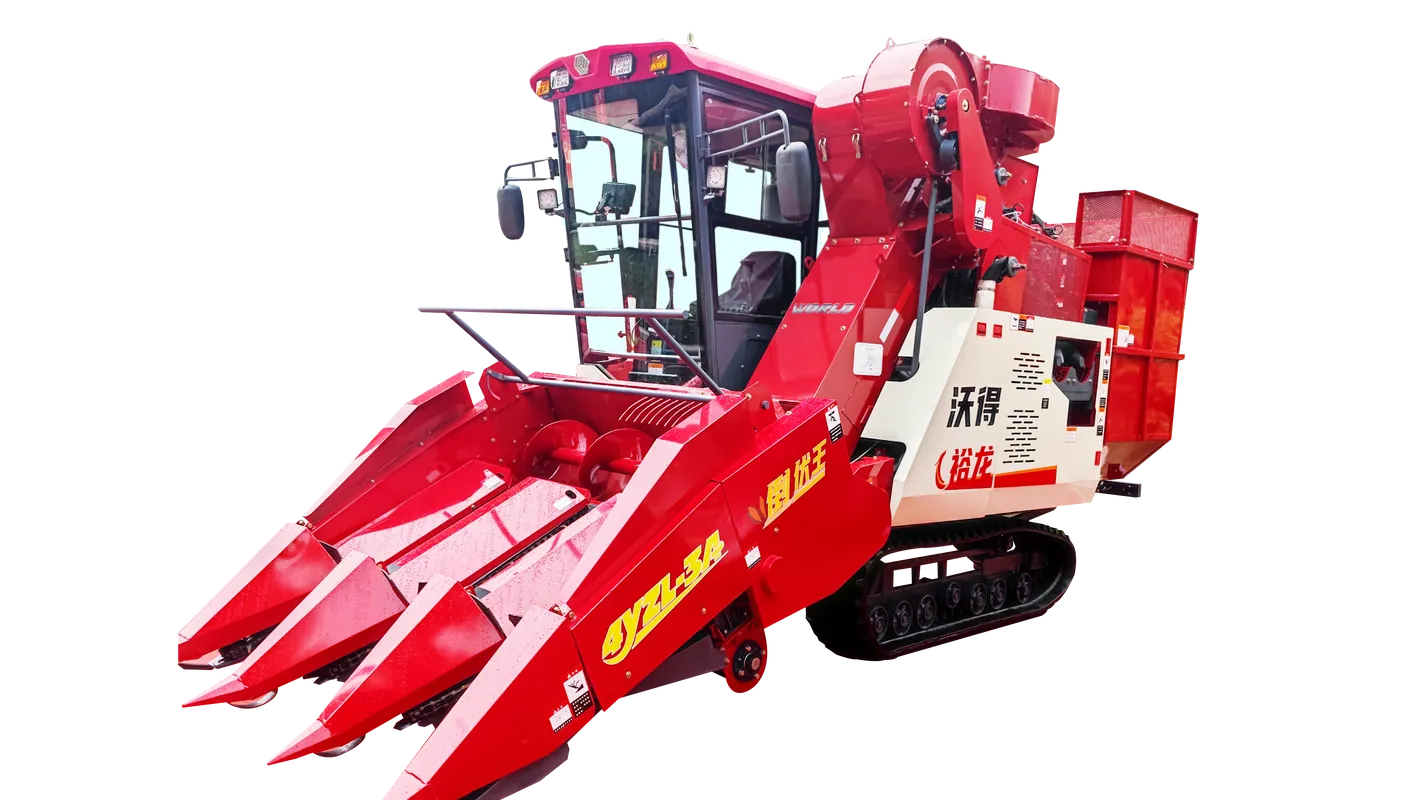

FMWORLD Corn Harvester - Track Type

FMWORLD corn harvester, researched and developed by FMWORLD Agricultural Machinery. Proved by the market.
  • 4YZL-3A



Model 4YZL-3A

Type Crawler type, picking ear, peeling

Engine Model YC4DK140-T303

Engine Type Straight, vertical, water cooled, four stroke

Engine Power(kW) 103

RPM(r/min) 2300

Dimension LxWxH 6000X2220X3000

Weight (kg) 4540

Number of rows (Row) 3

Row spacing(mm) 600

Cutting Width(mm) 2010

Ground Clearance(mm) 265

working speed(km/h) 3~6

Work efficiency(hm2/h) 0.2-0.35

oil consumption(kg/hm2) W25

grain Transmission type left

grain Transmission structural style Chain rake

Picking type plate type

picking roller/plate (unit) 6

Type of peeling mechanism rubber roller

Number of Peeling rollers (unit) 14

Fan Type centrifugal

The fan diameter(mm) upper:Φ540 below:Φ385

Number of fan (unit) 2

gear box type HST+ Mechanical transmission box

track gauge(mm) 1350

rubber track type 90mm x 56  x 400mm

unloading type Hydraulic flip unloading
