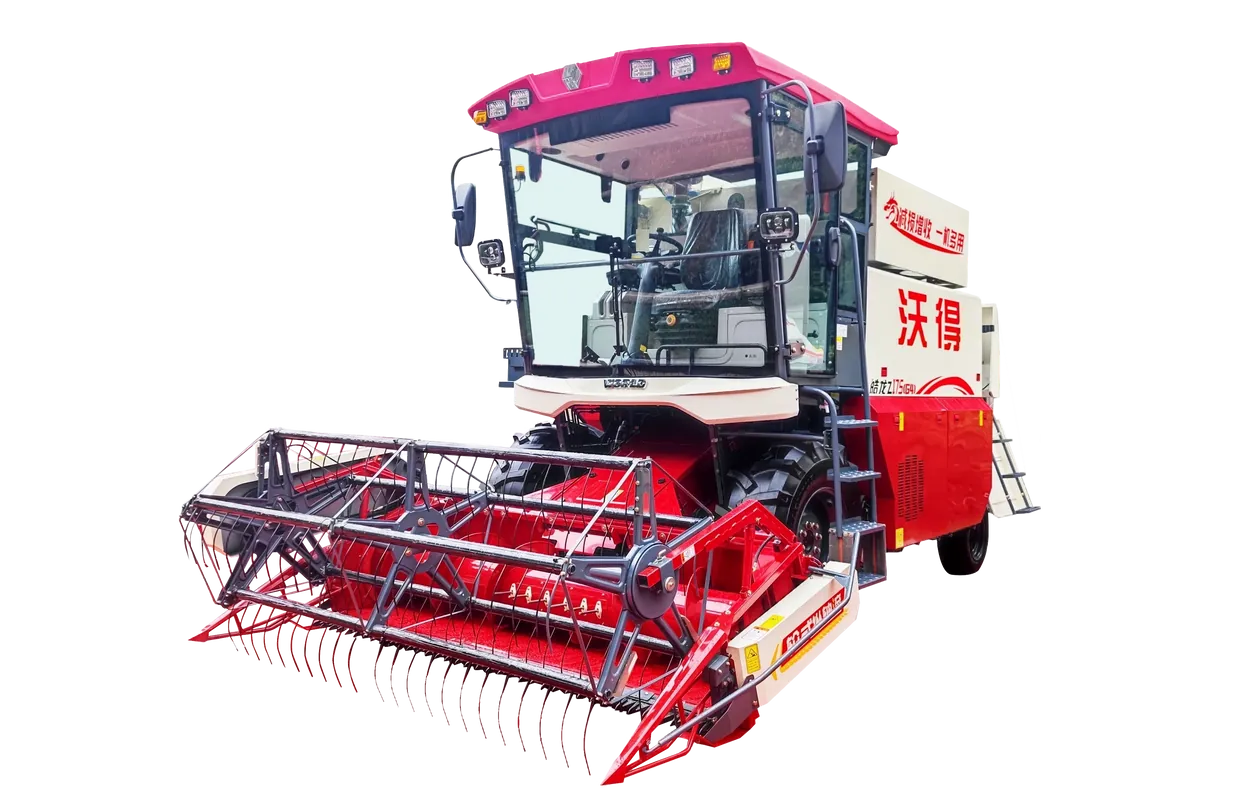

4YLZ-9
FMWORLD
| Quantity: | |
|---|---|
| ITEMS | DESCRIPTION |
| Model | 4YLZ-9 |
| Weight (KGS) | 5300 |
| Main Standard Configuration | |
| Working Dimension L*W*H (mm) | 6550*3200*3350 |
| Ground Clearance(mm) | 350 |
| Work Efficiency (hm²/h) | 0.2-1.4 |
| Diesel Engine | |
| Model | YUCHAI |
| Type | Inline, Water-cooling, 4*4 strokes ,Direct Inject |
| Rated Power/Rotating Speed | 160HP/2600rpm |
| Fuel Capacity (L) | 211 |
| Trsnmission & HST | |
| Transmission | Mechanical |
| Work Flow of HST Pump | 45CC |
| Minimum turning radius (mm) | Turn left: 6500 Turn right: 7500 |
| Tire specifications | |
| Tyre Size | Drive wheel: 15-24 Guide wheel: 10/75-15.3 |
| Gauge (mm) | Drive wheel: 1900 Guide wheel: 1670 (adjustable) |
| Wheelbase (mm) | 2960 |
| Header Platform &Conveyor Trough | |
| Feeding Capacity(kg/s) | 7 |
| Cutting Bar Lift | Hydraulic Control |
| Cut Width(mm) | 2750 |
| Thresher parts | |
| Threshing Drum Type | Axial Flow Type With Beat Bar |
| Threshing Drum Dia.*Length(mm) | φ700*2520 |
| Threshing drum three gears adjustable | 630/450/365 |
| Cleaning System | Vibrating Sieves+Adjust Air Blow by Centrifugal Fan |
| Grain Tank | |
| Granary volume (m³) | 2.8 |
| Grain Unloading Type | Electric Control |
| Others | |
| Cabin/Canopy | Cabin with AC |
| Crops | Rice ,Wheat ,Rapeseed,Soybean, Corn Seed |
