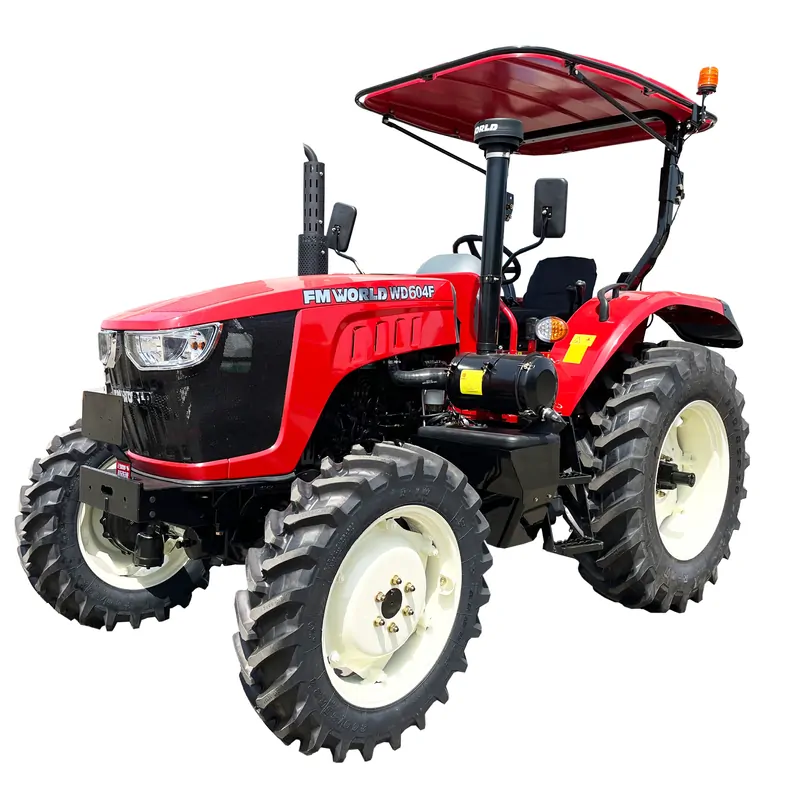

FMWORLD Tractor - 604F

FMWORLD F-Series tractor is one of the most popular products in our product range. F - series tractor covers various horsepower from 60 to 70 which could be used in various condition and situation of farmer's daily life. 604F equipped with a 60hp stage 2 engine with 12+12 gear. 115L fuel tank is competent at most farm job. If you want a mulitple use tractor for your hay day, FMWORLD 604F is a wise choice. Cabin is optional.
  • F Series (604F)

  • FMWORLD

Availability:
Quantity:
ModleFMWORLD 604F
Structure4*4
EngineEngine Power@speed(HP)60@2300
Engine Type4 Cylinder, Inline, Vertical, Water-cooled, diesel engine
Fuel Tank Capacity(L)115
Battery12V
Air CleanerDry
TransmissionGearsShuttle 12F +12R
ClutchDual Clutch
BrakeMechanical disc
Differential LockPin Type, Mechanical
PTO SystemDirection of turningClockwise,viewed from tractor rear
Diameter of PTO Shaft(mm)35
PTO Speeds(rpm)540/760
Hydraulic systemTypeCategory II & 3 point hitch
Control SystemPosition ,draft
Lifting Capacity(KG)≧1588
Other ParametersDimension(mm)@canopy3820*1850*2720
Gorund Clearance(mm)460
Tires(F/R)9.5R24/14.9R30 R-1W, other size optional
Wheel Base (mm)1992
Ballast Weight Front/Rear(kg)180/90
Min Operation Weight(kg)2500
