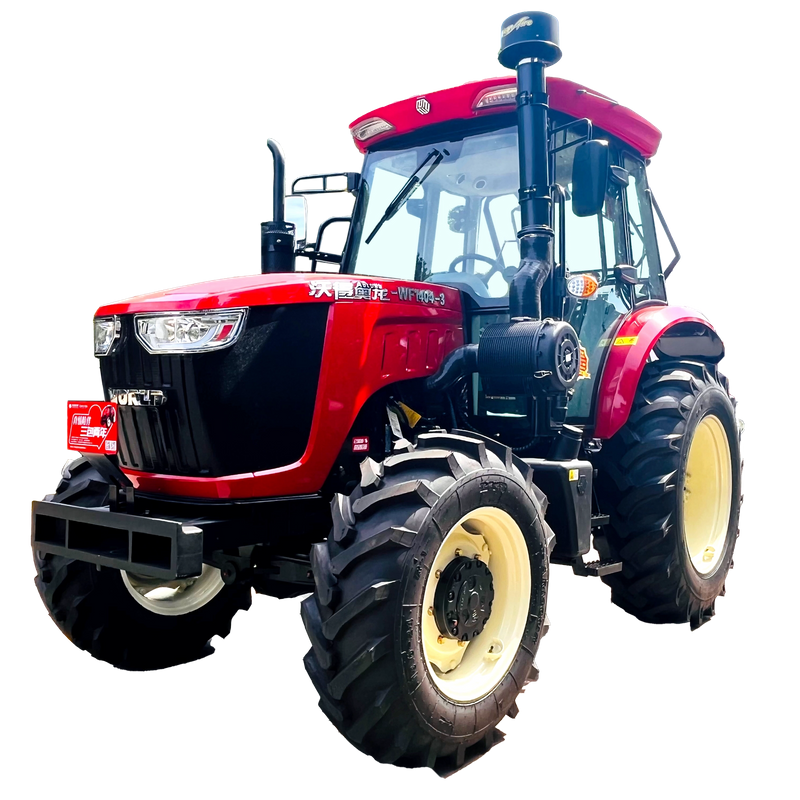

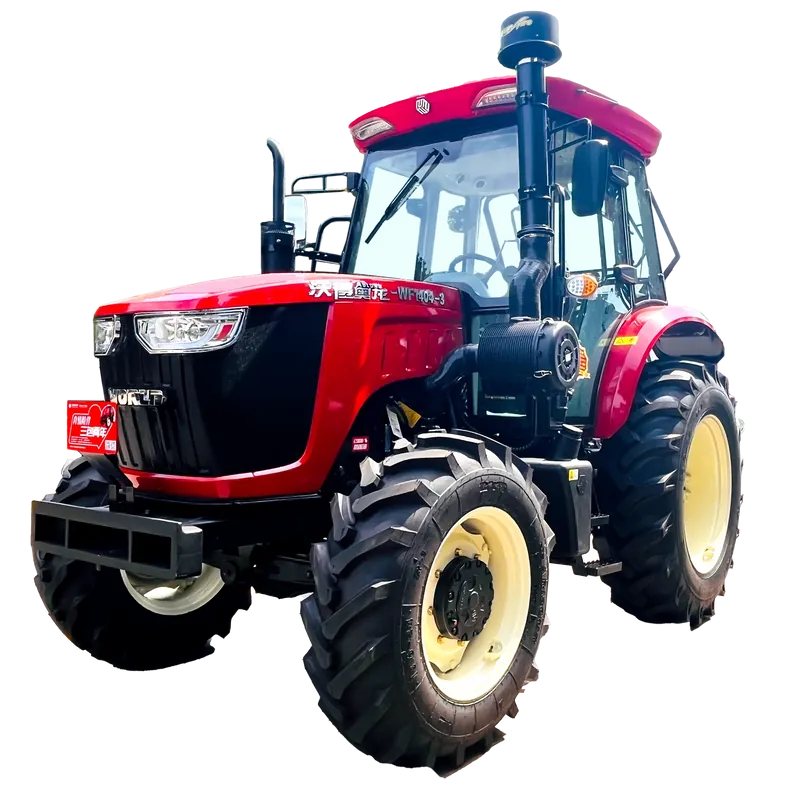

M Series (1404M Cabin)
FMWORLD
| Quantity: | |
|---|---|
| Modle | FMWORLD 1404M | |
| Structure | 4*4 | |
| Engine | Engine Power@speed（HP） | 140@2300 |
| Engine Type | 6 Cylinders | |
| Fuel Tank Capacity(L) | 180 | |
| Battery | 12V | |
| Air Cleaner | Dry | |
| Transmission | Gears | Shuttle 24F + 24R with Creeper |
| Clutch | Dual Clutch, Independent | |
| Brake | Mechanical disc | |
| Differential Lock | Pin Type, Mechanical | |
| PTO System | Direction of turning | Clockwise,viewed from tractor rear |
| Diameter of PTO Shaft(mm) | 35 | |
| PTO Speeds（rpm） | 540/760/850 | |
| Hydraulic system | Type | Category III & 3 point hitch |
| Control System | Position ,draft | |
| Lifting Capacity(KG) | ≧3706 | |
| Other Parameters | Steering | Hydraulic Power Steering |
| Dimension(mm)@canopy | 4780*2130*2760（Canopy） | |
| Gorund Clearance(mm) | 400 | |
| Tires（F/R） | 13.6-24/16.9-34 R-1, other size optional | |
| Wheel Base (mm) | 2400 | |
| Ballast Weight Front/Rear（kg） | 320/180 | |
| Min Operation Weight（kg） | 4150(canopy)/4450(cabin) | |
| Modle | FMWORLD 1404M | |
| Structure | 4*4 | |
| Engine | Engine Power@speed（HP） | 140@2300 |
| Engine Type | 6 Cylinders | |
| Fuel Tank Capacity(L) | 180 | |
| Battery | 12V | |
| Air Cleaner | Dry | |
| Transmission | Gears | Shuttle 24F + 24R with Creeper |
| Clutch | Dual Clutch, Independent | |
| Brake | Mechanical disc | |
| Differential Lock | Pin Type, Mechanical | |
| PTO System | Direction of turning | Clockwise,viewed from tractor rear |
| Diameter of PTO Shaft(mm) | 35 | |
| PTO Speeds（rpm） | 540/760/850 | |
| Hydraulic system | Type | Category III & 3 point hitch |
| Control System | Position ,draft | |
| Lifting Capacity(KG) | ≧3706 | |
| Other Parameters | Steering | Hydraulic Power Steering |
| Dimension(mm)@canopy | 4780*2130*2760（Canopy） | |
| Gorund Clearance(mm) | 400 | |
| Tires（F/R） | 13.6-24/16.9-34 R-1, other size optional | |
| Wheel Base (mm) | 2400 | |
| Ballast Weight Front/Rear（kg） | 320/180 | |
| Min Operation Weight（kg） | 4150(canopy)/4450(cabin) | |
