FMWORLD Ruilong

FMWORLD Ruilong Series is the star series in FMWORLD Agricultural Machinery. After 20 years upgrading and completing, Ruilong series combine harvester has been one of the best seller in China and other areas of the world. This 4LZ-4.0E sack type equipped the 83/88hp turbo engine. It is powerful but good in fuel consumption. The cutting width is 2m, which designed specificly to small and middle size farmland. The gearbox is developed by FMWORLD. 45cc HST makes a smoother running. To get a better cross ability, minimun ground clearance is up to 320mm.
  • Ruilong 4LZ-4.0E (Sack Type)

  • FMWORLD

Availability:
Quantity:

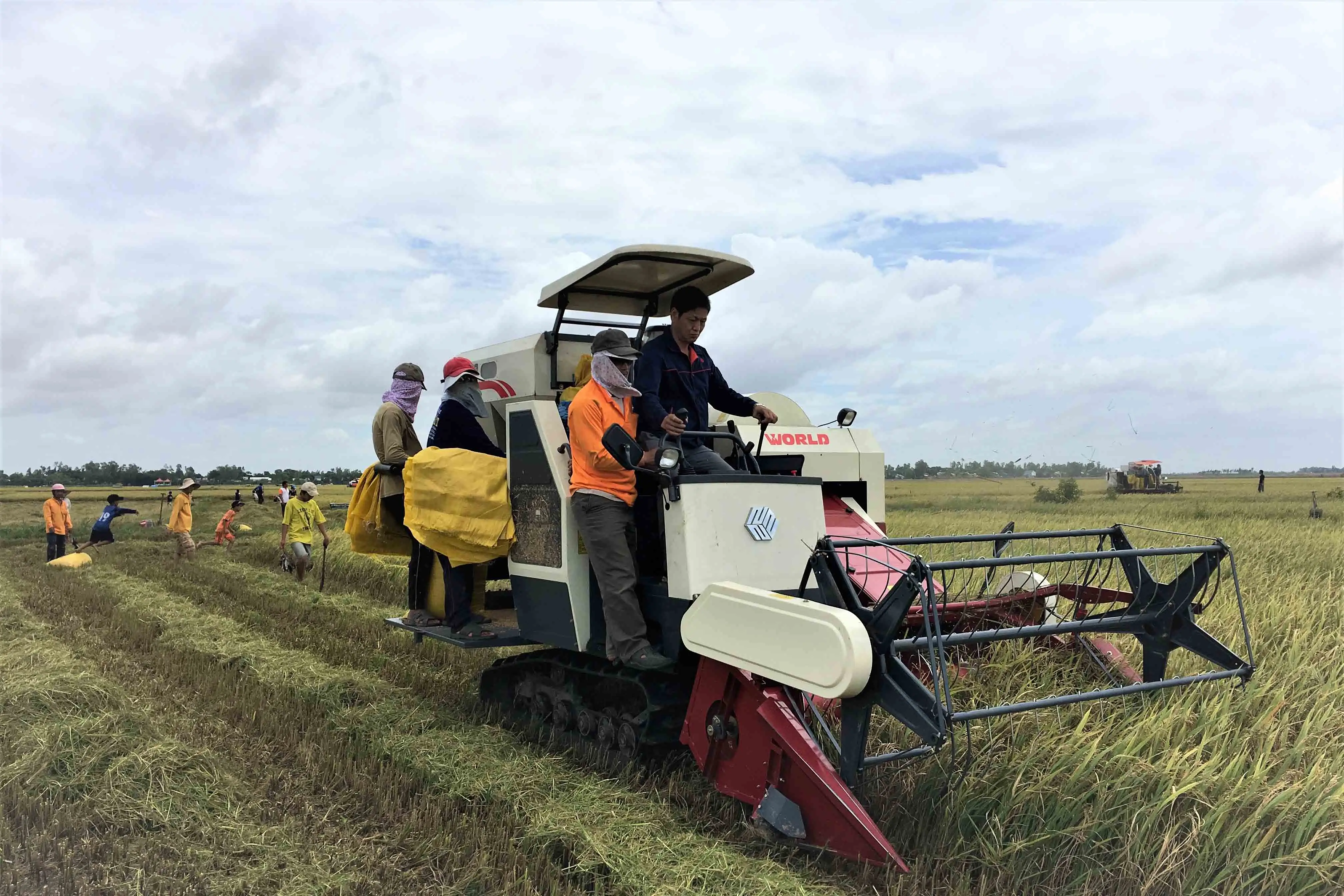

小仓场景图

Parameters

DESCRIPTION

RICE COMBINE HARVETSER (65.7 kW/88Hp)

RICE COMBINE HARVETSER (62 kW/83Hp)

Model 4LZ-4.0E(sack type) 4LZ-4.0E(sack type)
Type/Structure  Self-propelled Whole-feeding Self-propelled Whole-feeding
Engine power 88 83
Engine type Inline,water cool,four-stroke,direct injection Inline,water cool,four-stroke,direct injection

Engine Rated Speed

2600rpm 2600rpm
Hst 45 45
length 4960mm 4960
Width
3514mm
3514mm
Height 2830mm
2830mm
weight 2800
2800
Engine model 4L88 4L88
Fuel capacity 130L 130L
Gear box

Hydraulic Gearbox Box ZKB85

Hydraulic Gearbox Box ZKB85

Chassis: Track

500 x 90 x 51 mm

500 x 90 x 51 mm

Chassis: Track Center

1150mm 1150mm

Chassis: Ground Clearance

320mm 320mm

Cutting width

2100mm
2100mm

Feeding Capacit

4kg/s 4kg/s

Cutting Bar Lift

Hydraulic Control

Hydraulic Control

Threshing type

Axial flow type with Beat Bars

Axial flow type with Beat Bars

Threshing Cylinder (Diameter x Length)

620 x 2010 mm

620 x 2010 mm

Filtrate Type /Separating Type /Cleaning Type

Vibrating sieves + Centrifugal fan

Vibrating sieves + Centrifugal fan

Conveyor Type

With Reverse Mechanism  With Reverse Mechanism

Grain tank type

Sack Loading

Sack Loading

Grain tank

0.3m3

0.3m3

Work efficiency

0.37 - 0.66 ha/

0.37 - 0.66 ha/

Crops

Rice, Wheat, Rapeseed, Soybean

Rice, Wheat, Rapeseed, Soybean
