2WZL-1000
FMWORLD
| Quantity: | |
|---|---|
Palm car complete machine parameter table | |||
order number | project | unit | Design value |
1 | model | 2WZL-1000 | |
2 | Overall weight of the machine | kg | 3160 |
3 | engine type | 4G33 | |
4 | engine power | Kw | 55 |
5 | Transport dimensions(length x width x height) | mm | 4470x1860x2000 |
6 | Minimum ground clearance | mm | 300 |
7 | Dounrong | m3 | 3.1 |
8 | gauge | mm | 1200 |
9 | gear-box | Medium, high and low | |
10 | Fuel tank capacity | L | 62 |
11 | Hydraulic oil tank volume | L | 56 |
12 | The unloading height of the scissor fork mechanism when it is not lifted | mm | 1490 |
13 | The unloading height of the scissor fork mechanism when lifting | mm | 3010 |
14 | Unloading Angle | 23° | |
15 | The lifting height of the knee wrestling knife fork mechanism | mm | 1520 |
16 | Maximum radius ofoperation with a grip | mm | 2460 |
17 | Maximum unloading height of the grab | mm | 4300 |
18 | Rubber Track Specifications | 500×90×56 Rubber Track with 60mm Lug Height and Mud-Scraper Pattern | |
19 | High, Medium, and Low Travel Speeds | Km/h | 10/7.2/5.5 |

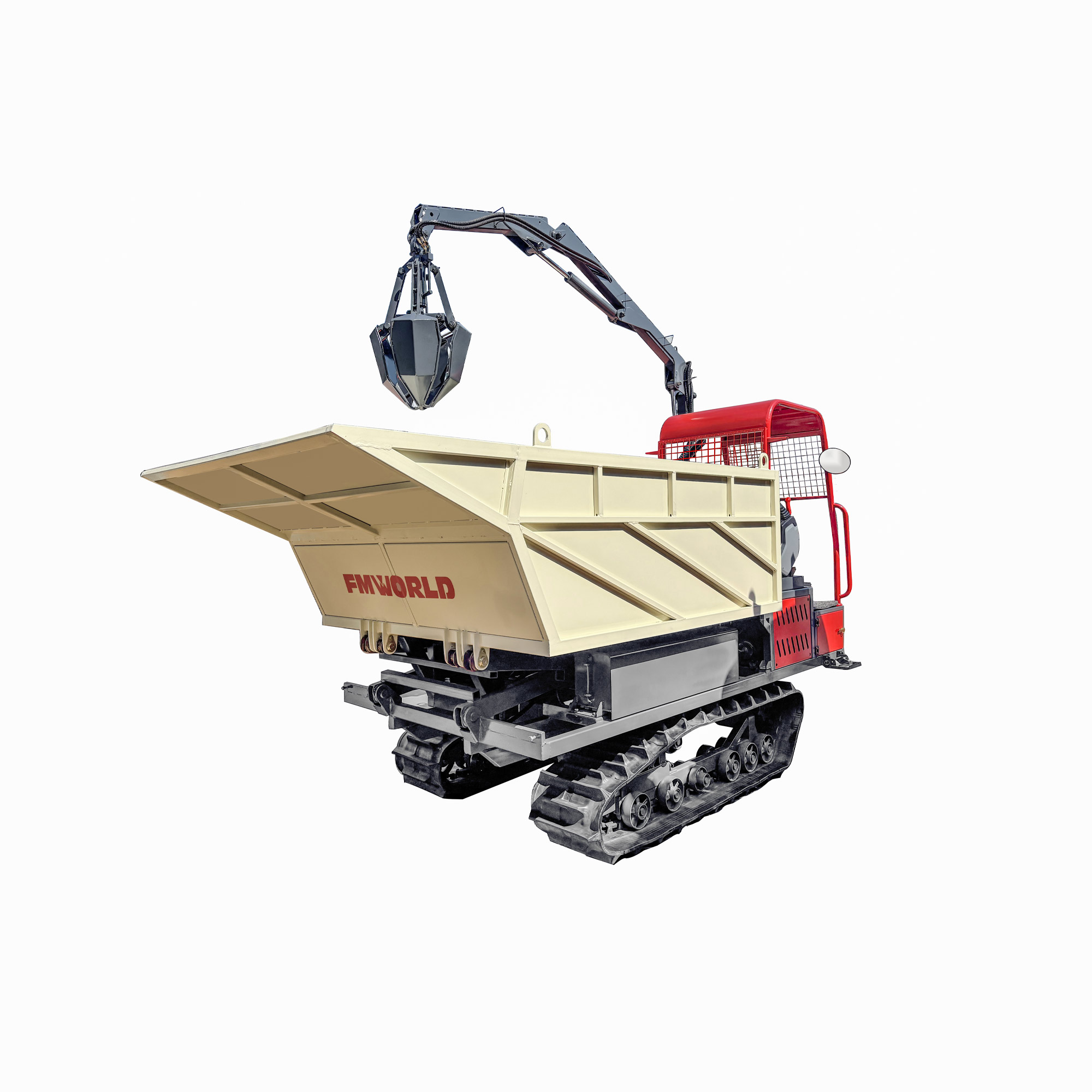

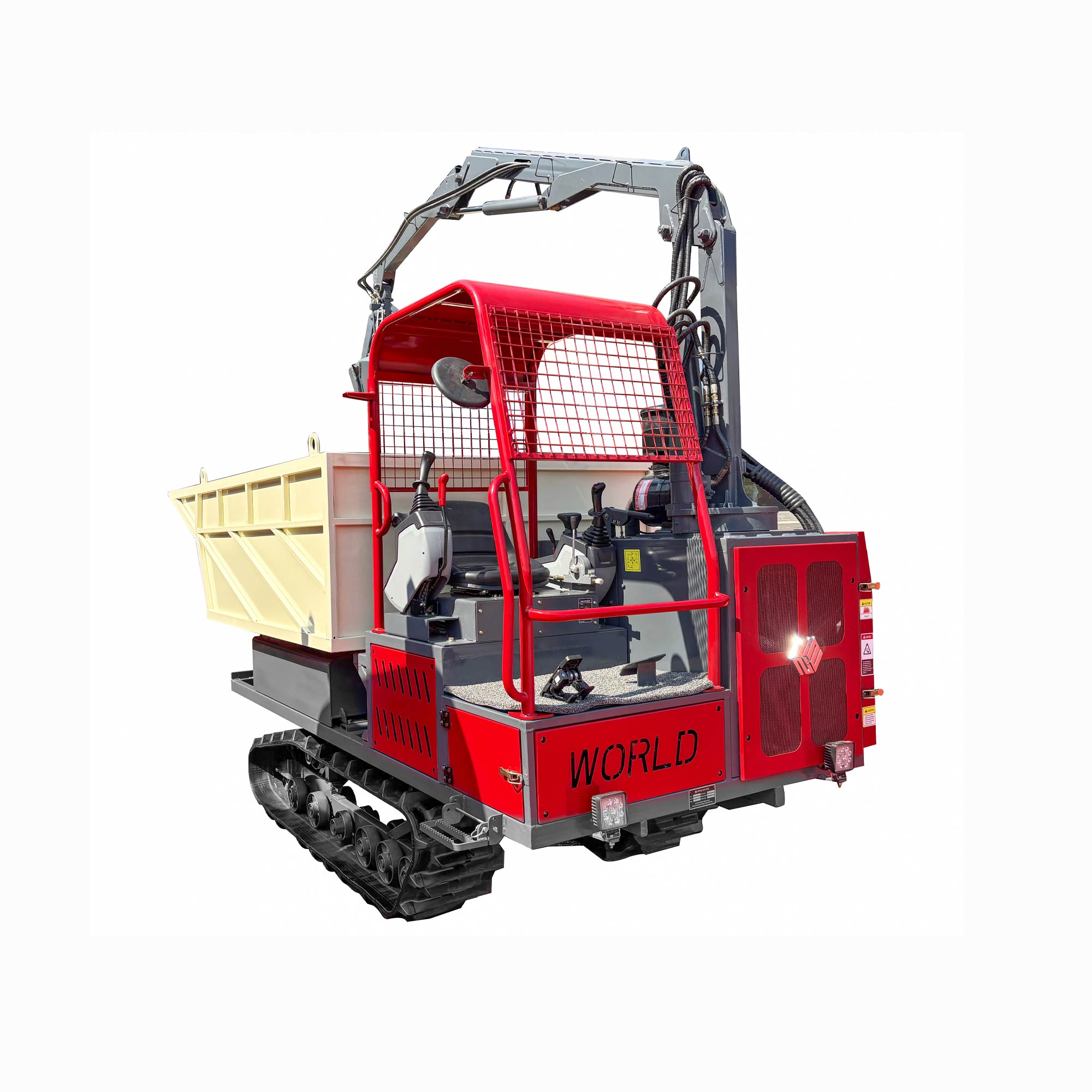

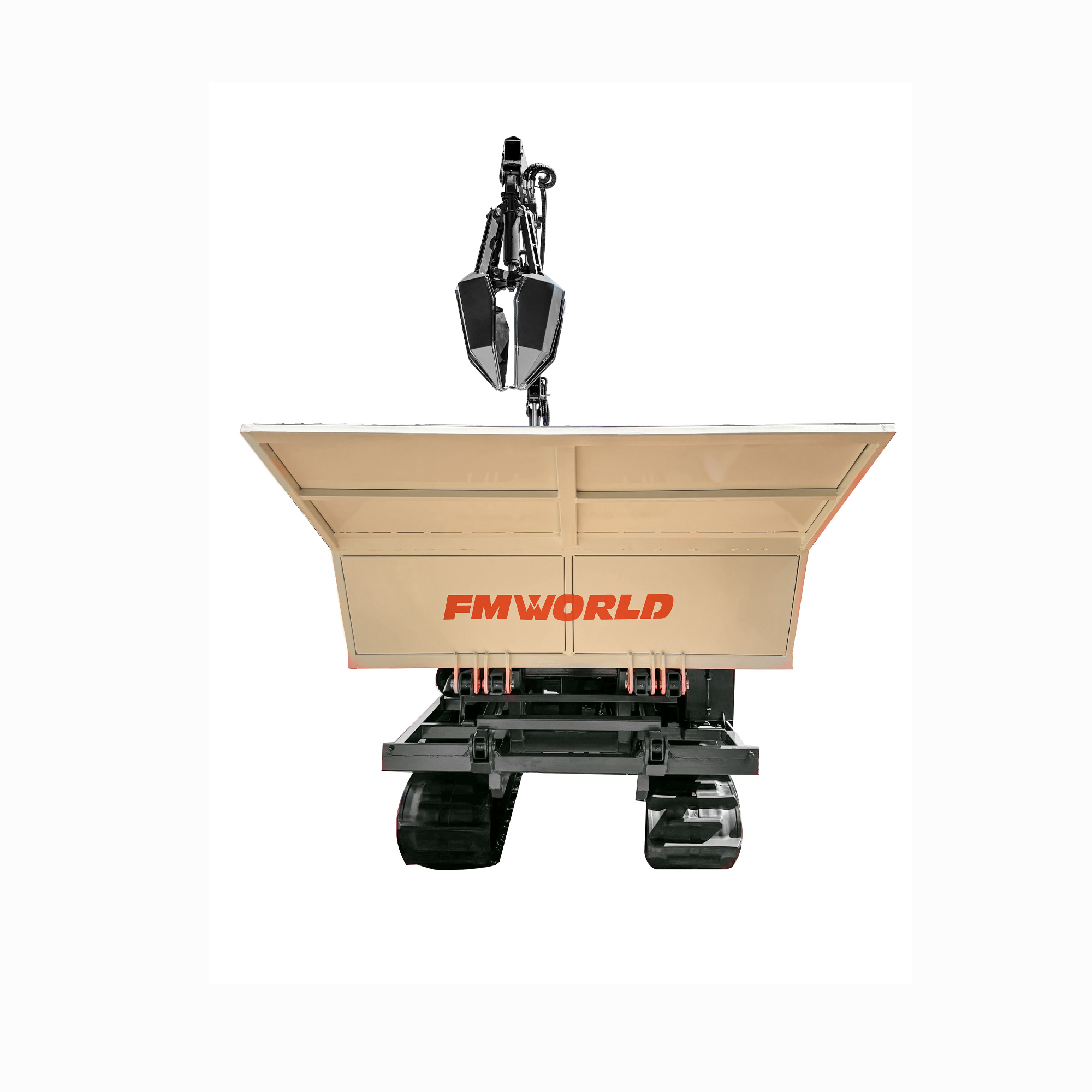

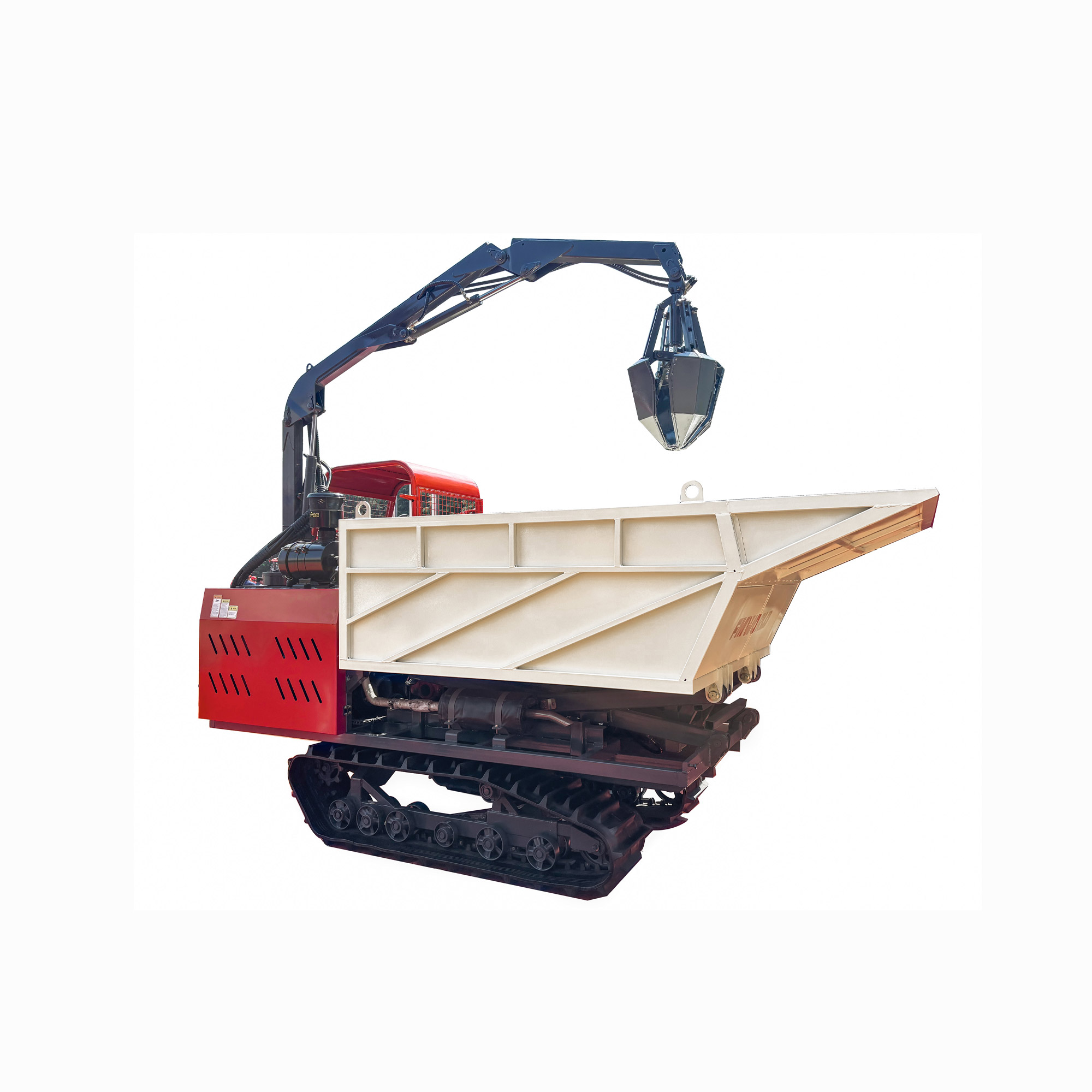

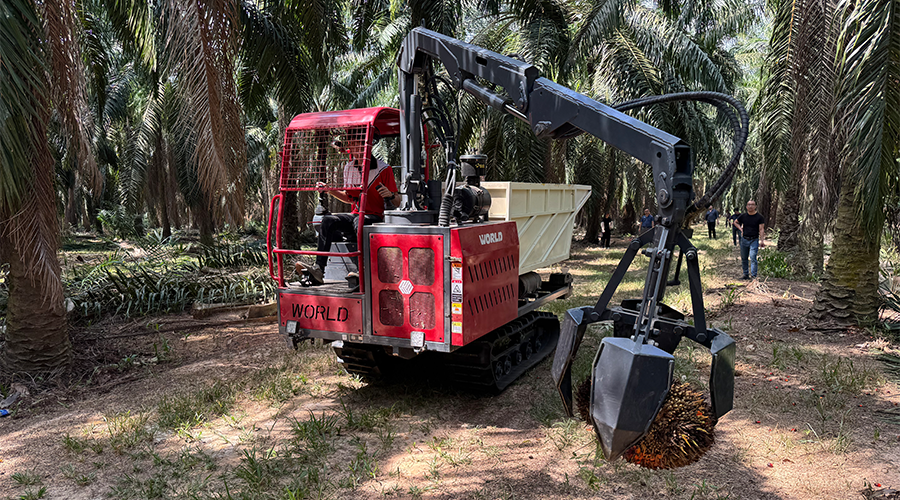

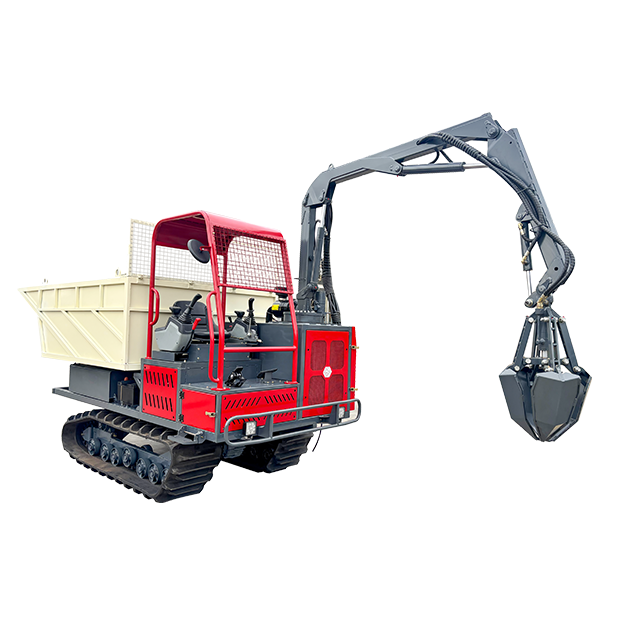

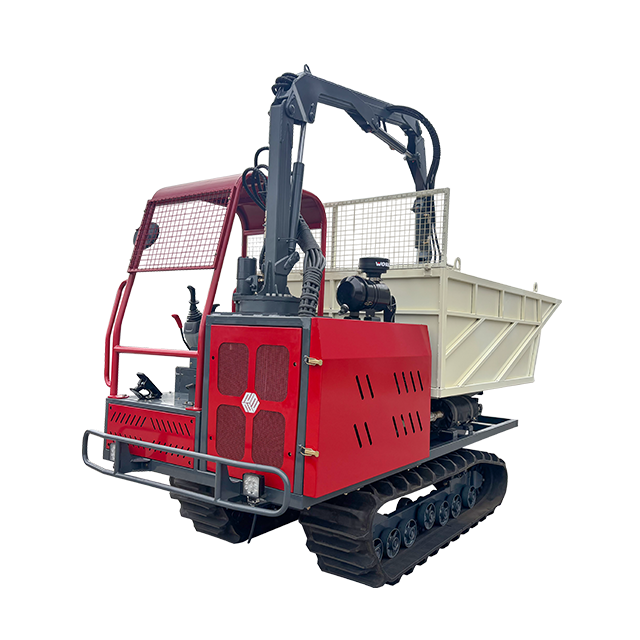

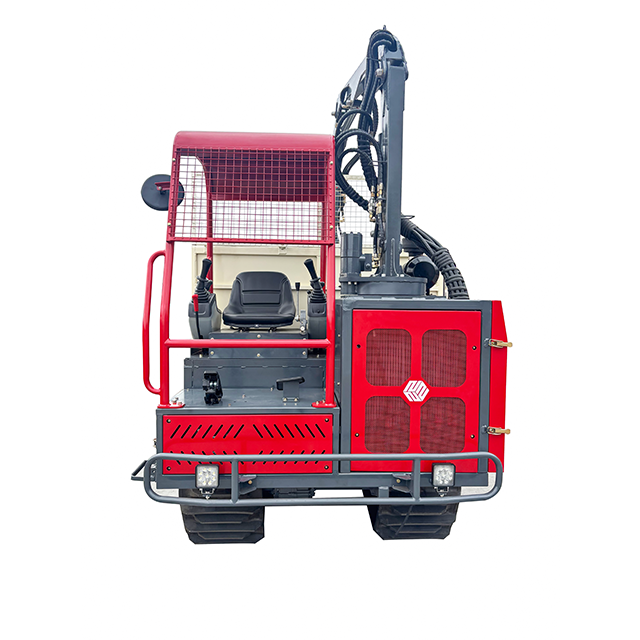

The Palm Fruit Picker and Transporter is an all-in-one machine that combines the efficiency of mechanical picking with the convenience of on-the-go transportation. This machine is equipped with a high-precision picking mechanism that gently detaches ripe palm fruits from their bunches, ensuring minimal damage and maximum yield. This seamless integration of picking and transport processes not only speeds up the harvest but also minimizes the risk of fruit spoilage and loss.
Featuring a user-friendly interface and easy maneuverability, the machine can navigate through various terrains, making it suitable for use in diverse plantation layouts. Its energy-efficient design ensures a low environmental footprint, while its sturdy construction guarantees long-term durability and performance under harsh weather conditions. The Palm Fruit Picker and Transporter represents a significant advancement in agricultural technology, offering an efficient, sustainable, and cost-effective solution for the palm oil industry.
