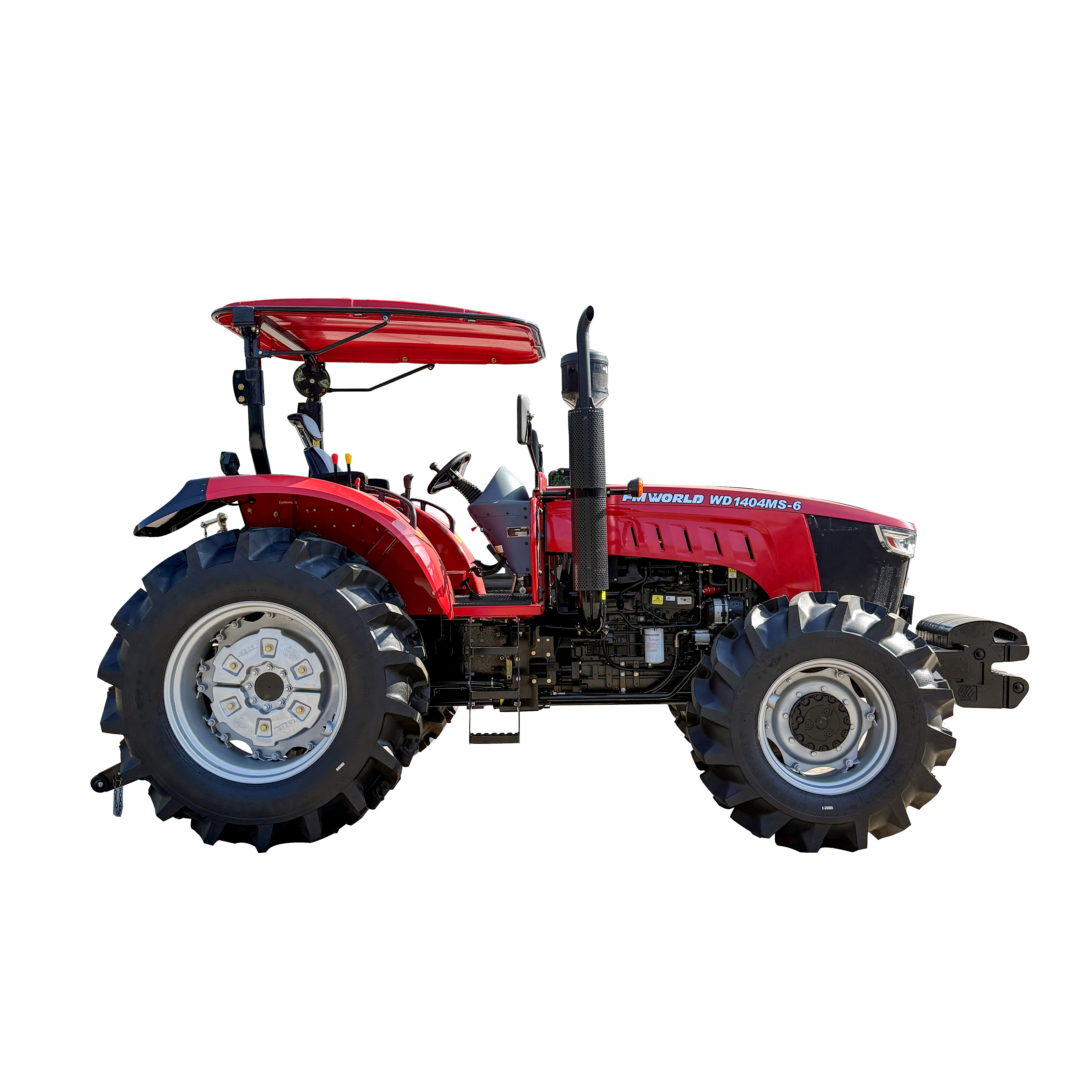

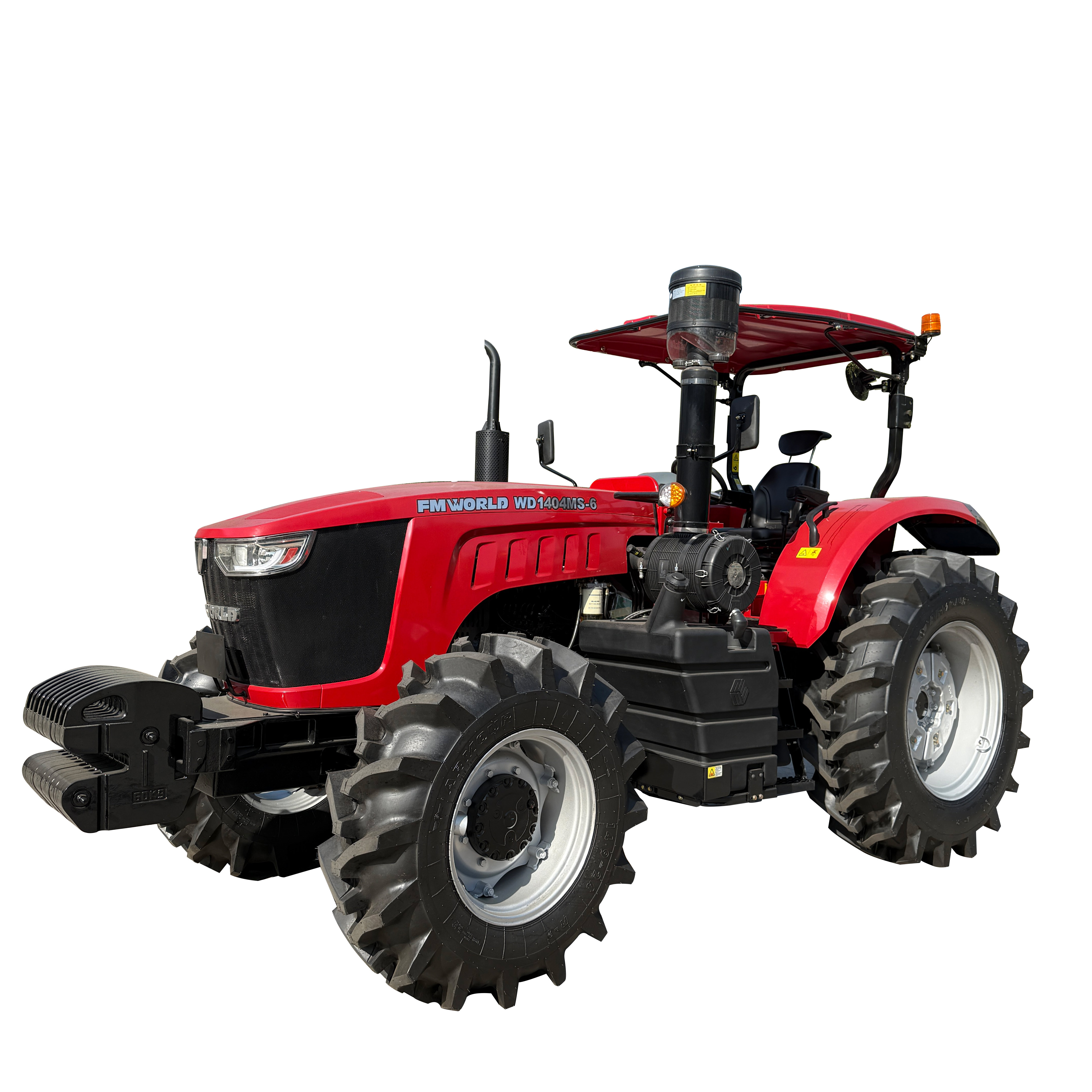

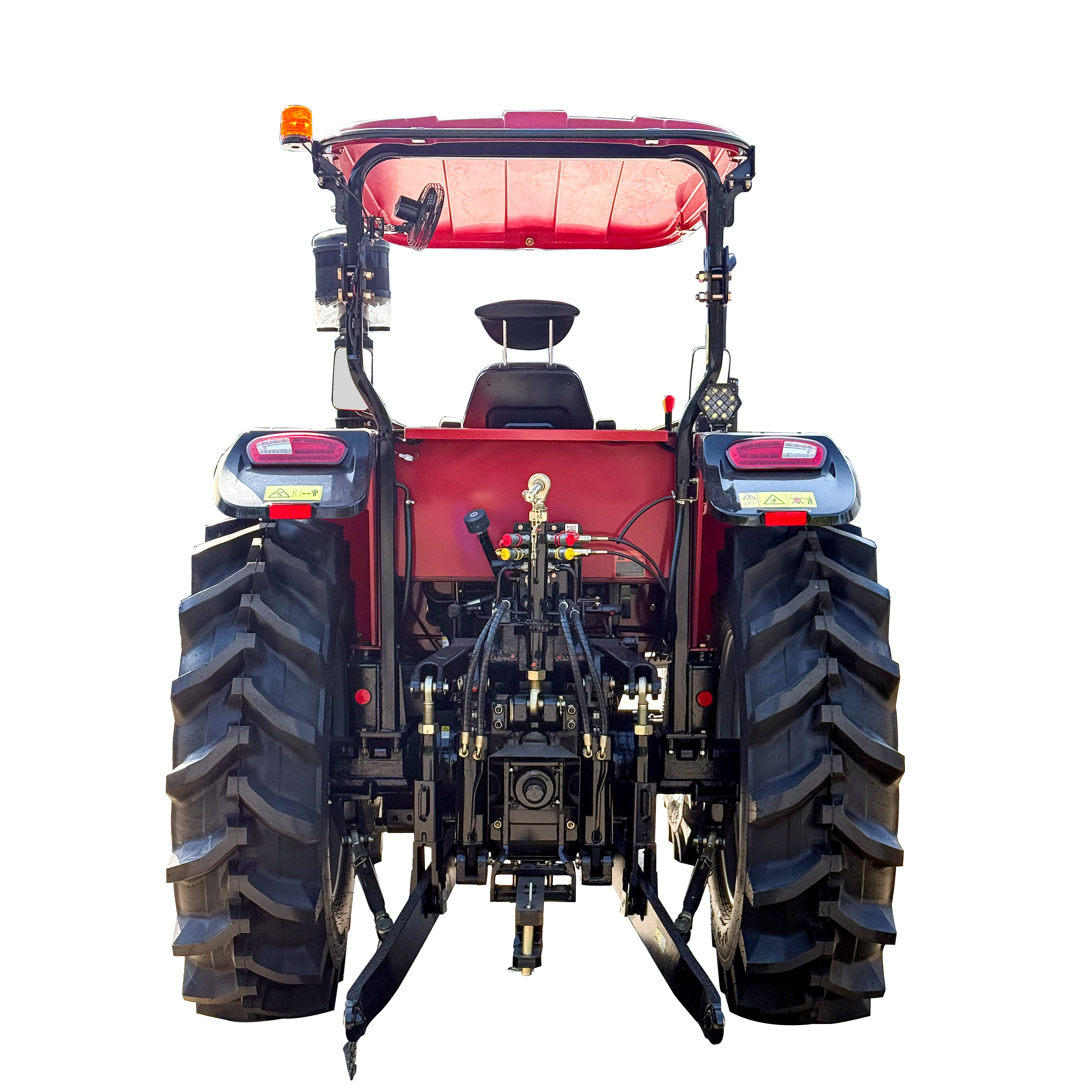

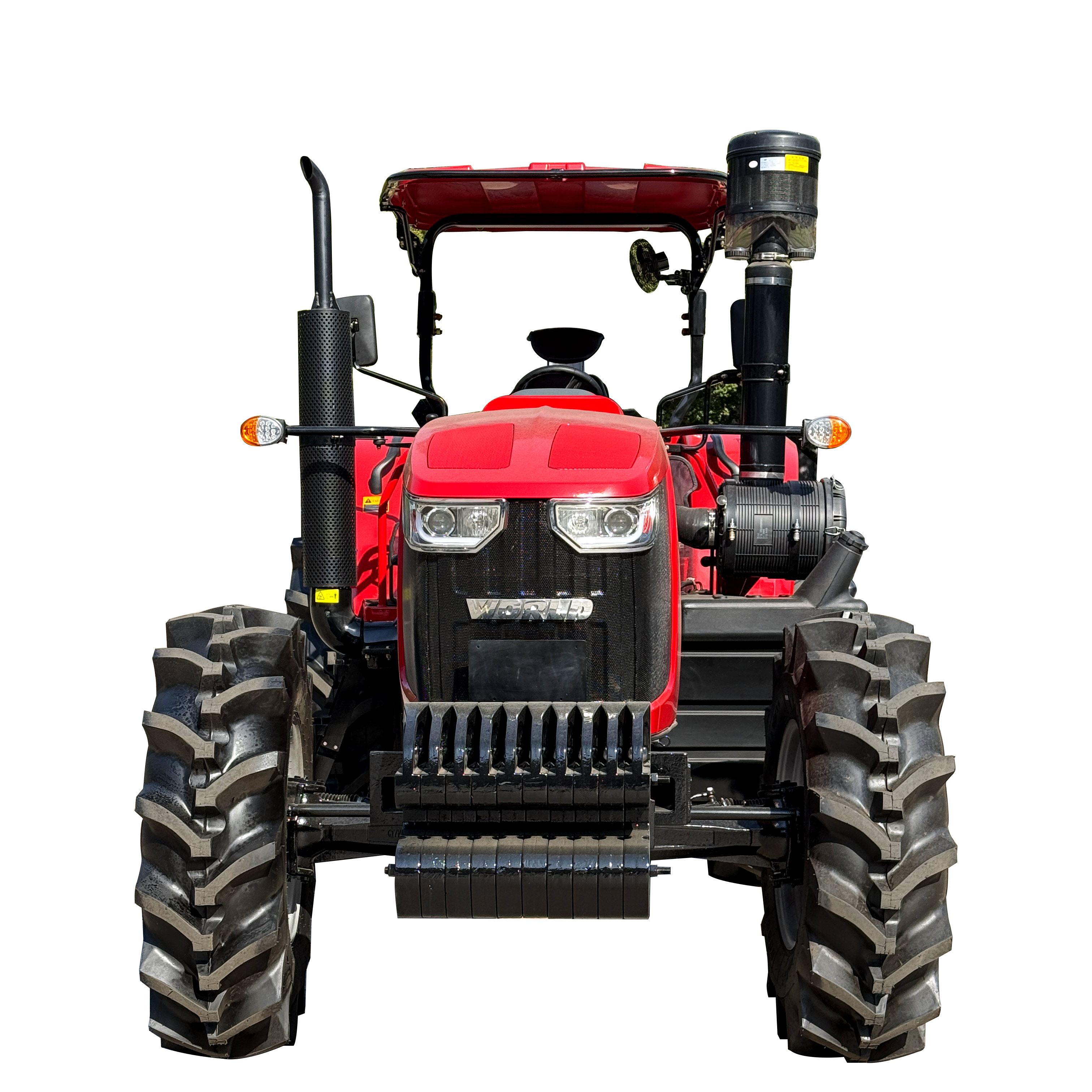

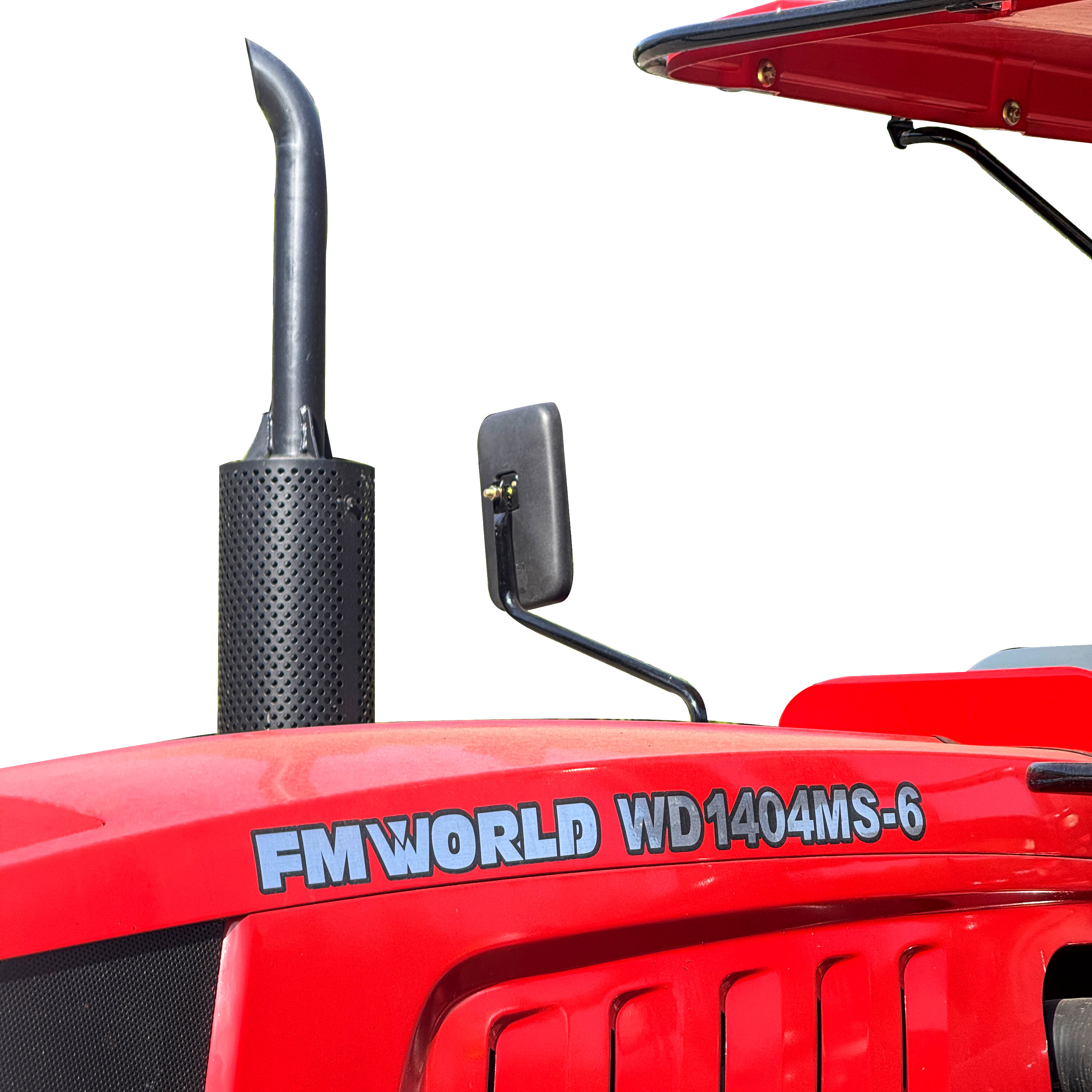

MS Series (1404MS-Canopy)
FMWORLD
| Quantity: | |
|---|---|
Model | WD1104MS | WD1404MS | WD1404MS-6 | |
Structure | 4*4 | |||
Engine | Engine Power@speed（HP） | |||
Engine Type | 4 Cylinders, Inline, Vertical, Water-cooled, diesel engine | 6 Cylinders, Inline, Vertical, Water-cooled, diesel engine | ||
Fuel Tank Capacity(L) | 200 | 370 | ||
Battery | 12V | |||
Air Cleaner | Dry | |||
Transmission | Gears | Shuttle 24F + 24R with Creeper | ||
Clutch | Dual Clutch, Independent | |||
Brake | Mechanical disc | |||
Differential Lock | Pin Type, Mechanical | |||
PTO System | Direction of turning | Clockwise,viewed from tractor rear | ||
Diameter of PTO Shaft(mm) | 35 | |||
PTO Speeds（rpm） | 540/760/1000 | |||
Hydraulic system | 3 Point Hitch | Category III &II | ||
Control System | Position, Draft, Float | |||
Rear Auxiliary Remote Valves | 2 Groups | |||
Lifting Capacity(KG) | ≧2912 | ≧3706 | ≧3706 | |
Other Parameters | Steering | Hydraulic Power Steering | ||
Dimension(mm)@Canopy@Cabin | 4780(1104M)/5100(1404M-6)*2130*2820 | |||
Gorund Clearance(mm) | 400 | |||
Tires（F/R） | 13.6-24/16.9-34 R-1, other size optional | |||
Wheel Base (mm) | 2368.5 | 2768.5 | ||
Wheel Track （F/R）(mm) | ||||
Ballast Weight Front/Rear（kg） | 320/180 | 400/180 | ||
Min Operation Weight（kg） | 4320(canopy)/4520(cabin) | 4820(canopy)/5020(cabin) | ||
