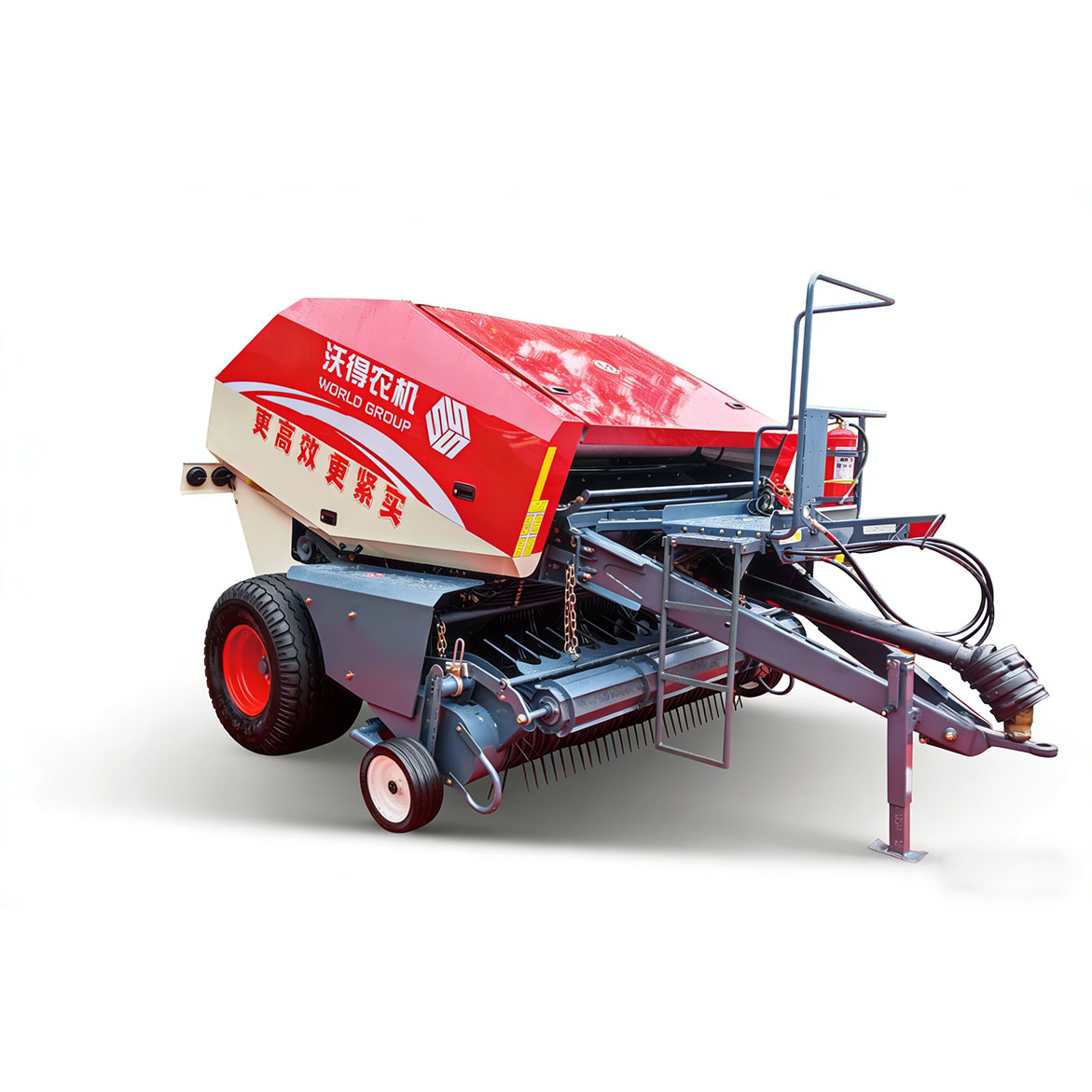

Model | / | 9YFC-2200 |
External Dimensions (L×W×H) | mm | 5280×3125×3750 |
Whole Machine Mass | kg | 5800 |
Power | kW | 288 |
PTO Speed | r/min | 760 |
Outer Baffles Width | mm | 2220 |
Inner Baffles Width | mm | 2200 |
Pick-up Structure | / | Hammer-claw type |
Hammer Claws Quantity | pcs | 24 |
Pick-up Working Width | mm | 2200 |
Chopping Working Width | mm | 2200 |
Moving Knives | pcs | 92 |
Fixed Knives | pcs | 188 |
Blowers | pcs | 2 |
Fan Blades | pcs | 10 |
Packing Room Size (L×W) | mm | 1270×755 |
Straw Bale Density | kg/m³ | ≥130 |
Operating Chamber Size (W×H) | mm | 340×440 |
System Pressure | MPa | 20 |
Main Oil Cylinder Stroke | mm | 960 |
Compression Oil Cylinder Stroke | mm | 405 |
Material Pushing Cylinder Stroke | mm | 820 |
Wheelbase | mm | 1950 |
Regular Hay Bale Rate | % | ≥95 |
Drop Resistance Rate | % | ≥90 |
Productivity per Hour | t/h | ≥2 |
Baling Rate | % | ≥98 |
Pick-up Loss Rate | % | ≤3 |
