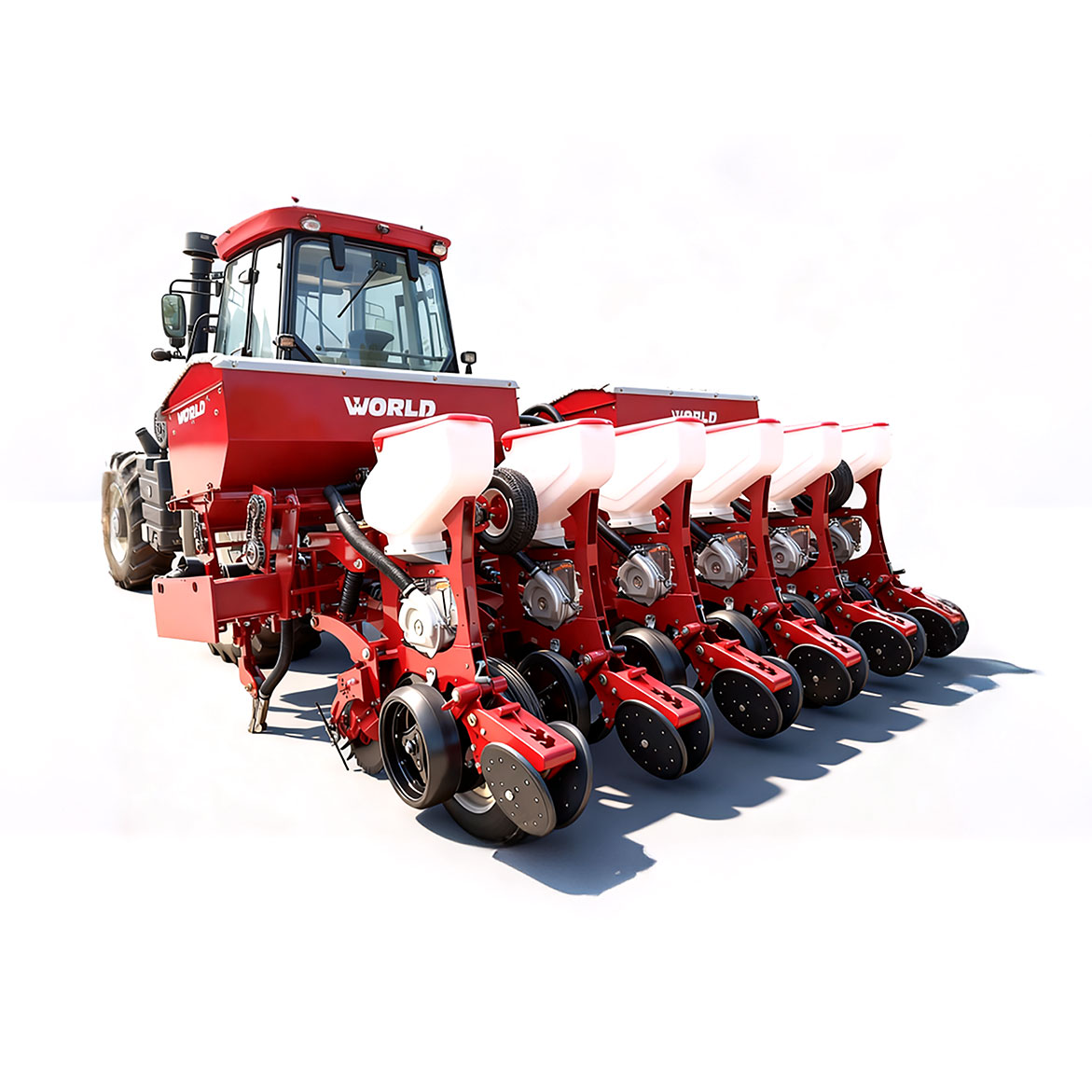

Model | 2BMQW-6 | Seed/fertilizer tank volume (L) | Seed box 36L×6/fertilizer box 500L×2 |
Structural type | Pneumatic/traction type | Seed/fertilizer discharge adjustment method | Seed: gear drive adjustment |
Matching power range (kW) | 66.2~103 | ||
Dimensions (length × width × height) (mm) | 3365×4005×1895 | Transmission mechanism type | Ground wheel, chain drive |
Operating speed range (km/h) | 6~10 | Opener type | Seed: double disc; fertilizer: single disc |
Operating hourly productivity (km²/h) | 1.68~2.94 | Number of openers (pieces) | 6 for sowing; 6 for fertilizing |
Row spacing (mm) | 550~650 | Opener depth adjustment range (mm) | 10~70 for sowing; 50~150 for fertilizing |
Number of working rows (rows) | 6 | Ground wheel type | Concave stripe pneumatic tire |
Working width (mm) | 3300~3900 | Ground wheel diameter (mm) | Ø767 |
Type of seeding device | Pneumatic type (metal material) | Ground wheel height adjustment range (mm) | No adjustment |
Number of seeding devices (pieces) | 6 | Stubble breaking and ridge clearing working parts type | Dual-sided star-shaped weeding wheel + corrugated disc |
Drive mode of seeding device | Ground wheel drive | Blower type | Mechanical centrifugal fan |
Type of fertilizer device | External groove wheel type | Blower impeller diameter (mm) | Ø400 |
Number of fertilizer devices (pieces) | 12 | Soil cover type | V-shaped rubber wheel |
Drive mode of fertilizer device | Ground wheel drive | Package type |
