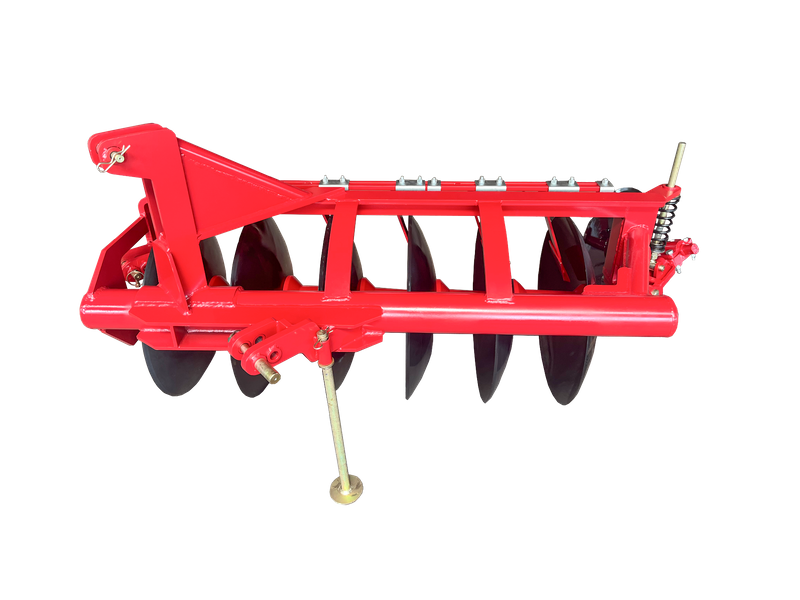

1LY.5-25
FMWORLD
| Color: | Please select |
|---|---|
| working width (mm): | Please select |
| working depth: | Please select |
| working depth(mm): | Please select |
| number: | Please select |
| weight: | Please select |
| matched power: | Please select |
| Quantity: | |
Rooted in reverence for the land and dedication to technology, FMWORLD is committed to providing efficient and reliable farming solutions for modern agriculture.
Key Features:
1.Tail Wheel Assembly Ensures Work Quality
The rear of the disc plough is equipped with a tail wheel assembly, which includes a disc-shaped tail wheel plate. Its main function is to balance the lateral and vertical forces generated during operation, thereby controlling the working width and depth of the plough.
2.Three-Point Hitch for Quick Installation
The machine features a three-point hitch design for easy and secure attachment. The reinforced mounting points ensure stability and prevent detachment during operation.
3.Manganese Steel Blades for Wear & Damage Resistance
The disc blades, the core working components of the plough, are made from 65MN steel through hot pressing. They deliver excellent soil-cutting, crushing, and furrow-turning performance.
| Model | Working Width (mm) | Working Depth (mm) | Disc Diameter (mm) | Number of Discs | Weight (kg) | Matched Power (hp) | Mounting Type |
| 1LY.5-25 | 1220 | 180 | 660 | 5 | 410 | 55-65 | Three-point Hitch |
| 1LY.6-25 | 1410 | 180 | 660 | 6 | 463 | 65-75 | |
| 1LY.7-25 | 1600 | 180 | 660 | 7 | 551 | 110 |
