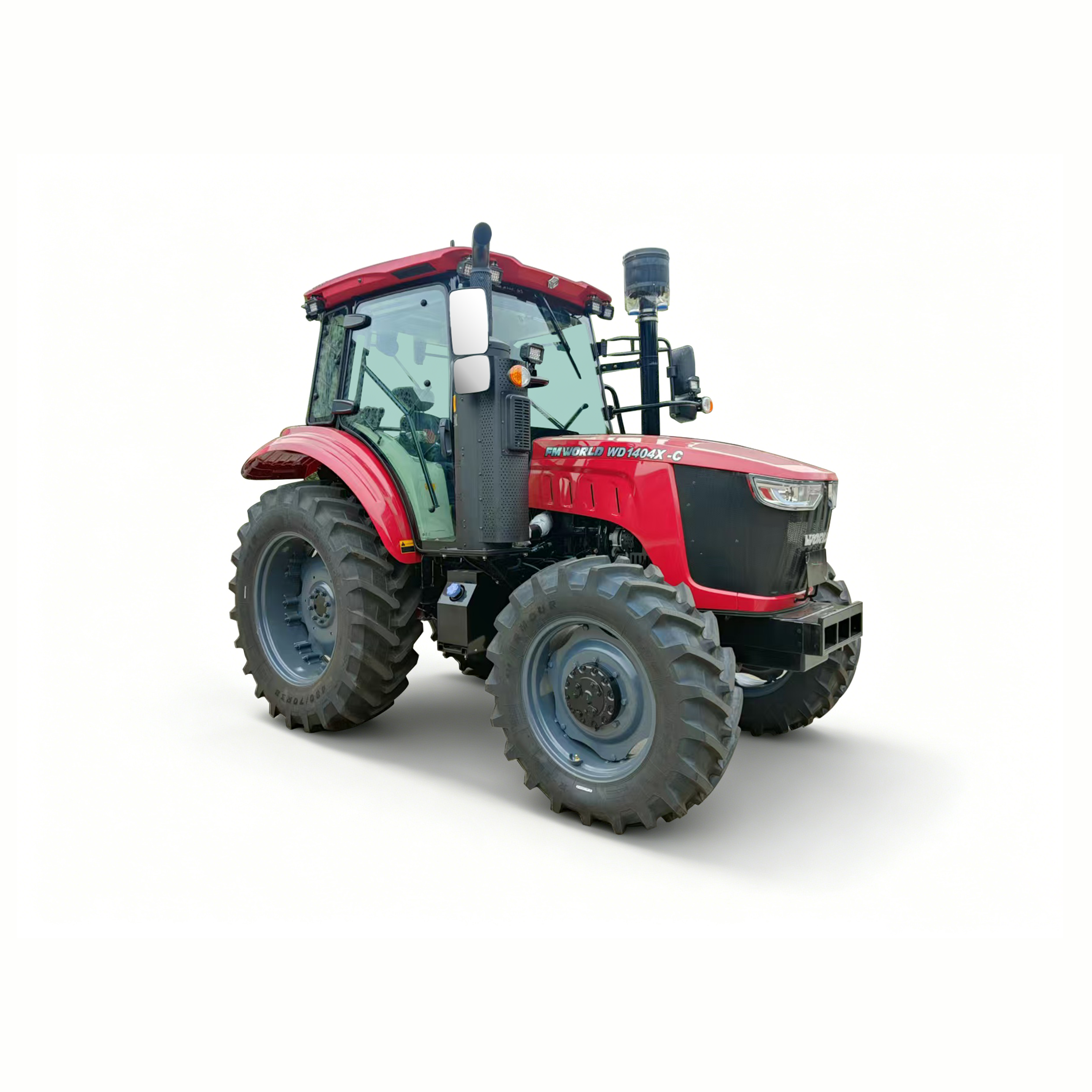

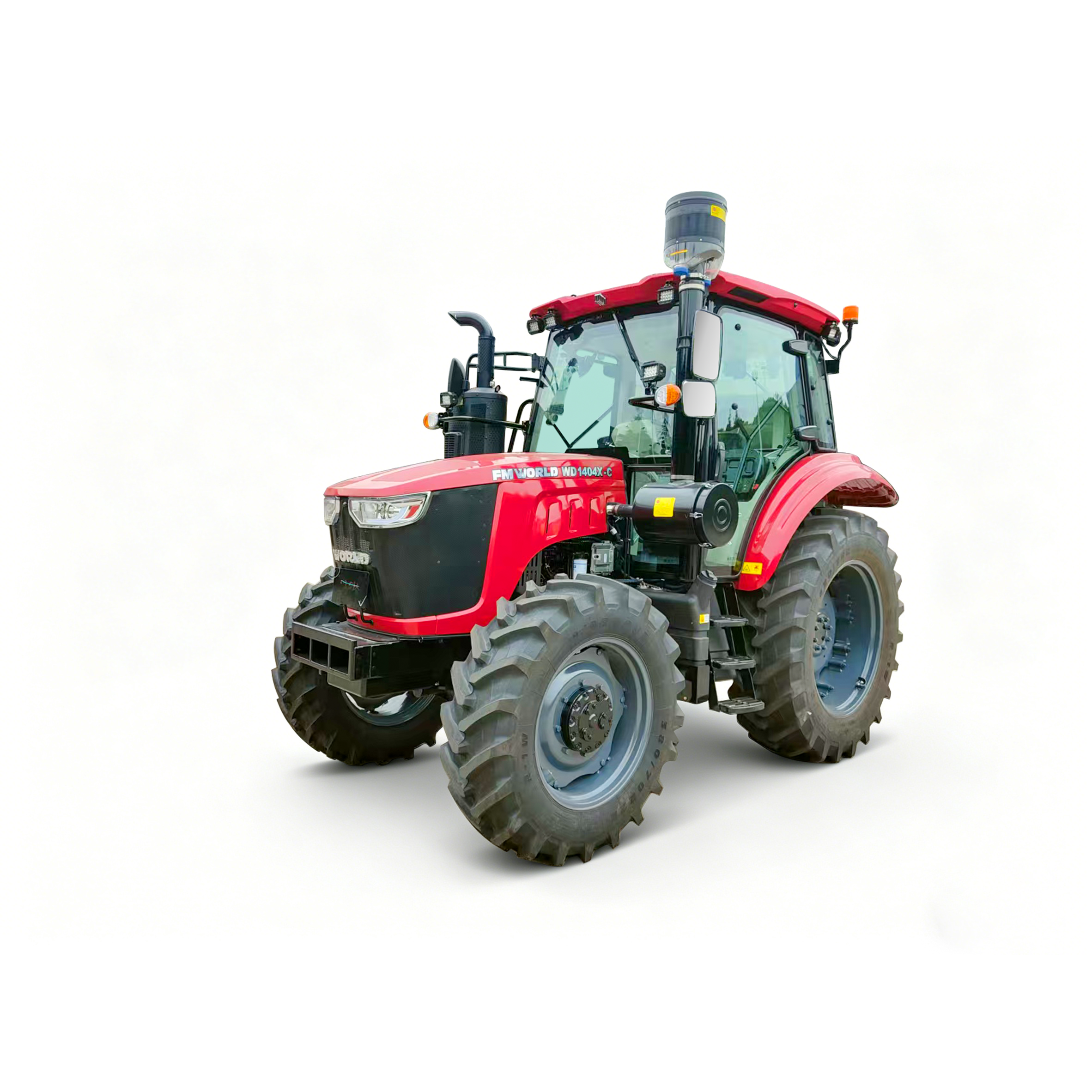

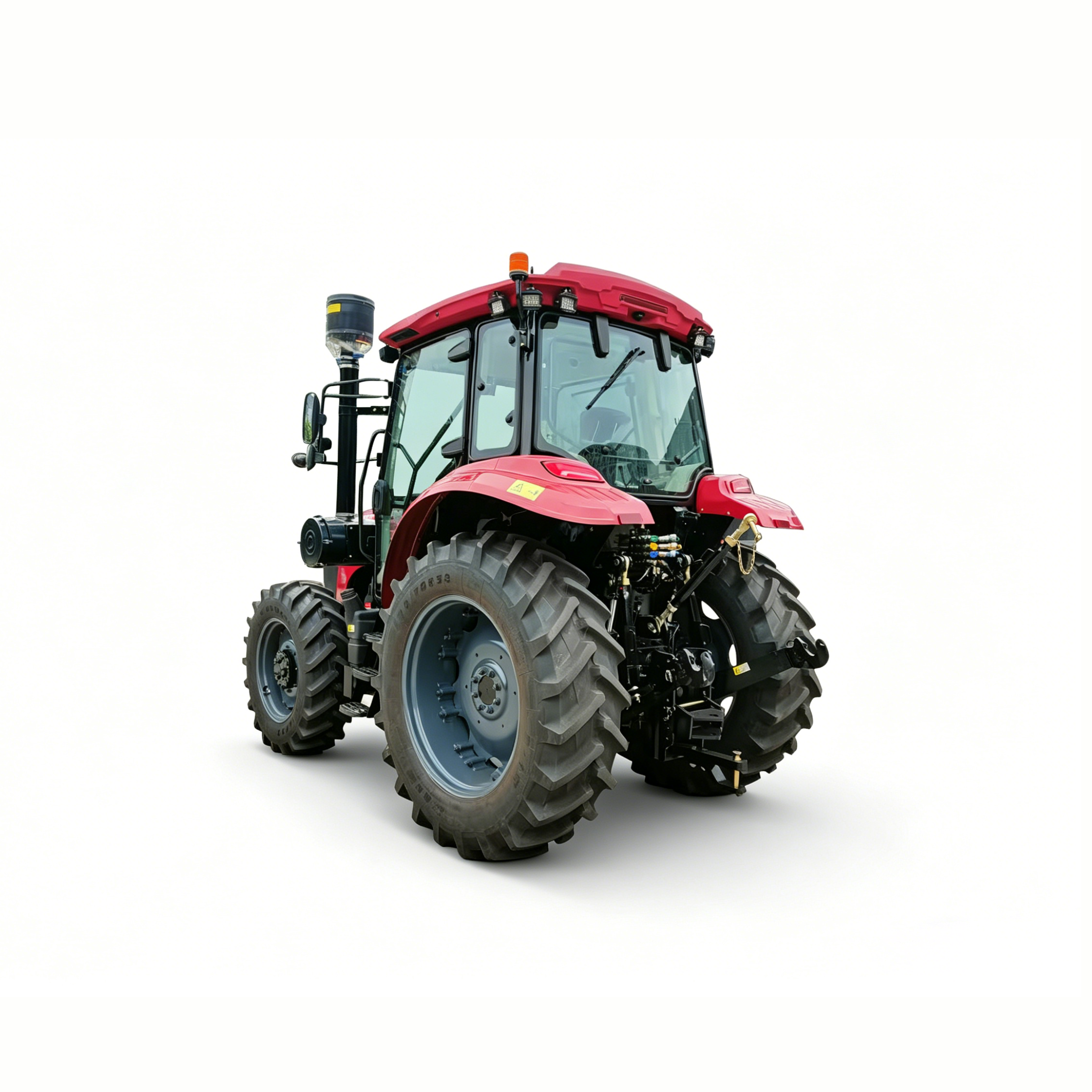

11404X-C
FMWORLD
| Quantity: | |
|---|---|
Parameters | |

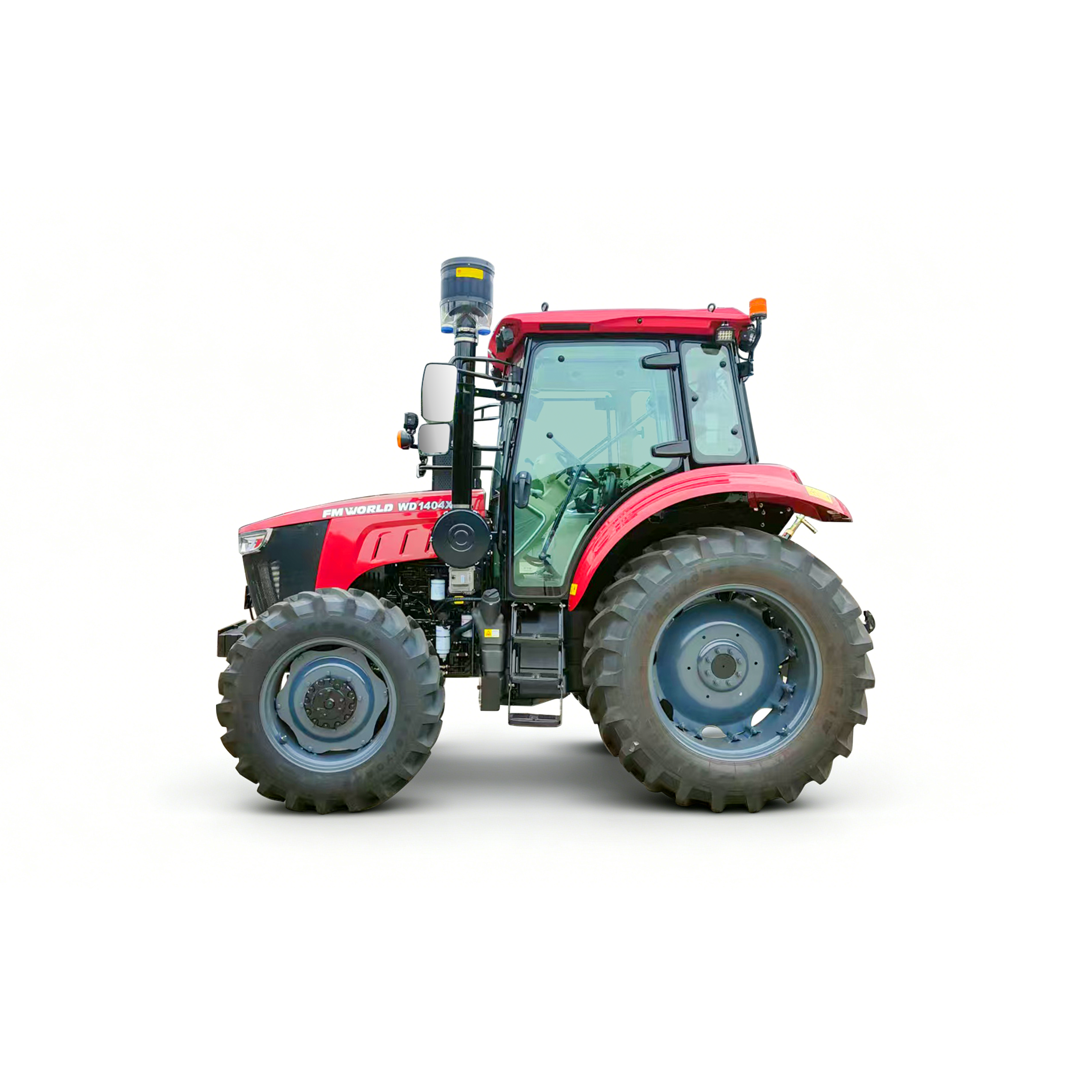

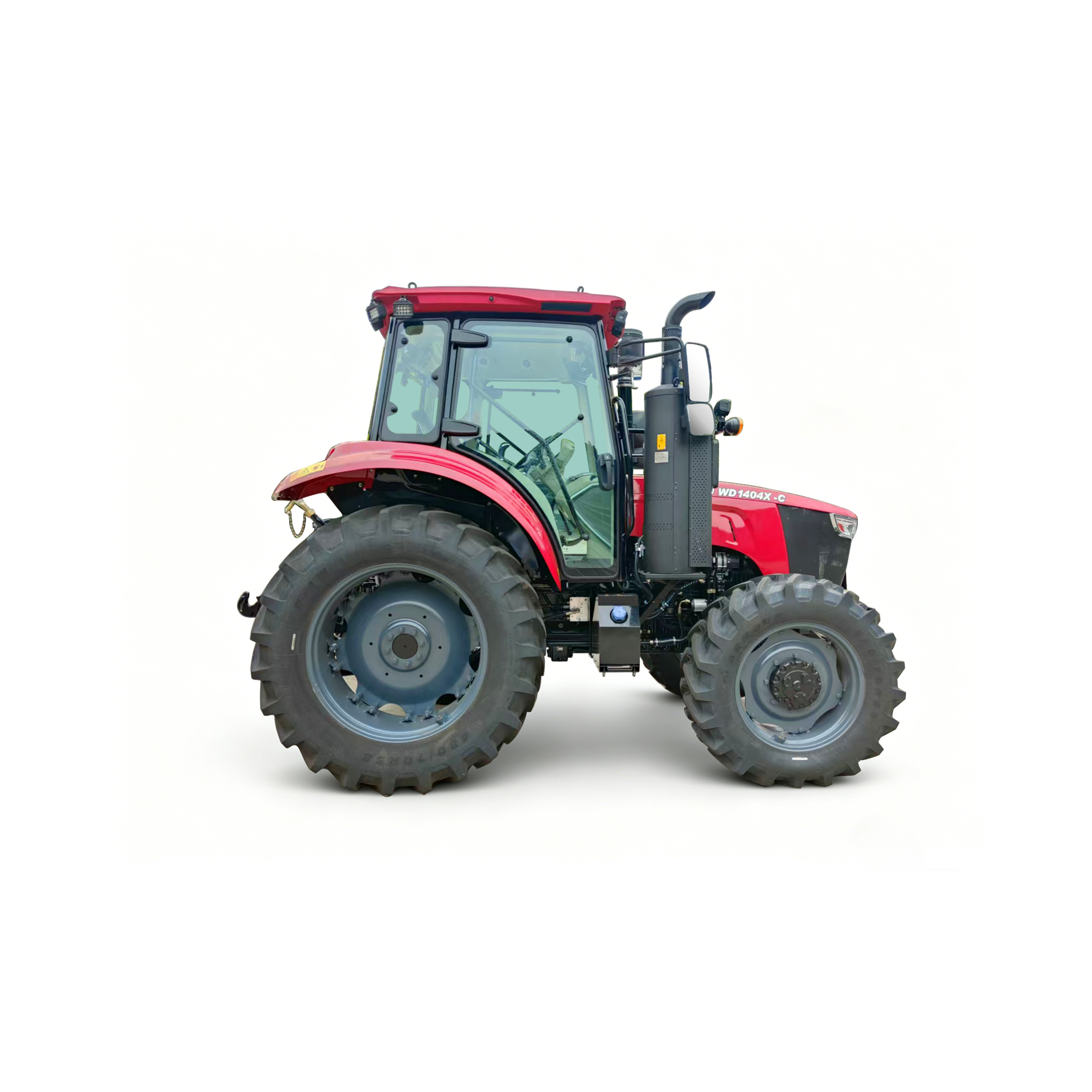

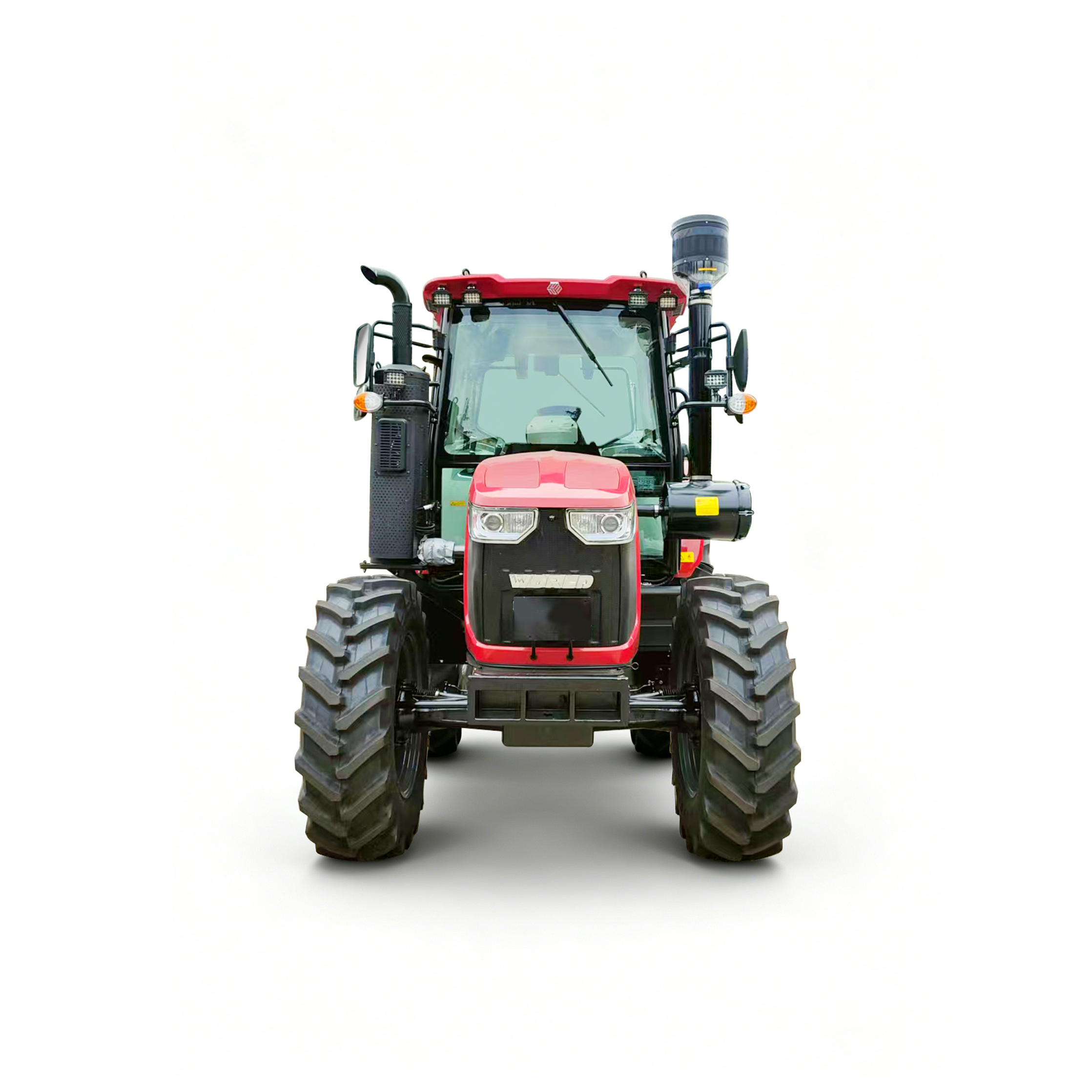

Model | WD1404X |
Structure | 4*4 |
Engine | EURO 5 |
Engine Power/Speed(HP) | 140/2300 |
Engine Type | 4 Cylinder,Inline,Water-cooling,4 Strokes,Injection |
Fuel Tank Capacity(L) | 200 |
Air Cleaner | Dry |
Transmission | |
No.of Speed | 32F+32R Shuttle with Creeper |
Main Cluth | Power Shuttle, Dual Clutch, Independent |
Brake | Mechanical Disc |
Differential Lock | Pin Type, Mechanical |
PTO | |
Direction of turning | Clockwise, viewed from tractor rear |
Diameter of PTO Shaft (mm) | 35 |
PTO Speed(rpm) | 540/760 |
Hydraulics | |
Type | Category Ⅲ & 3 Point Hitch |
Control System | Position, Draft |
Lifting Capacity (Kg) | ≥3706 |
Other Parameters | |
Steering | Hydraulic Power Steering |
Dimension(mm) | 4780*2130*2820 |
Ground Clearance (mm) | 400 |
Tires (F/R) | 380/70R28+480/70R38 |
Wheel Base (mm) | 2368.5 |
Front /Rear Counter Weight （Kgs) | F 320Kgs/ R 180Kgs |
Min Operation Weight (kg) | 4520 AC Cabin |
