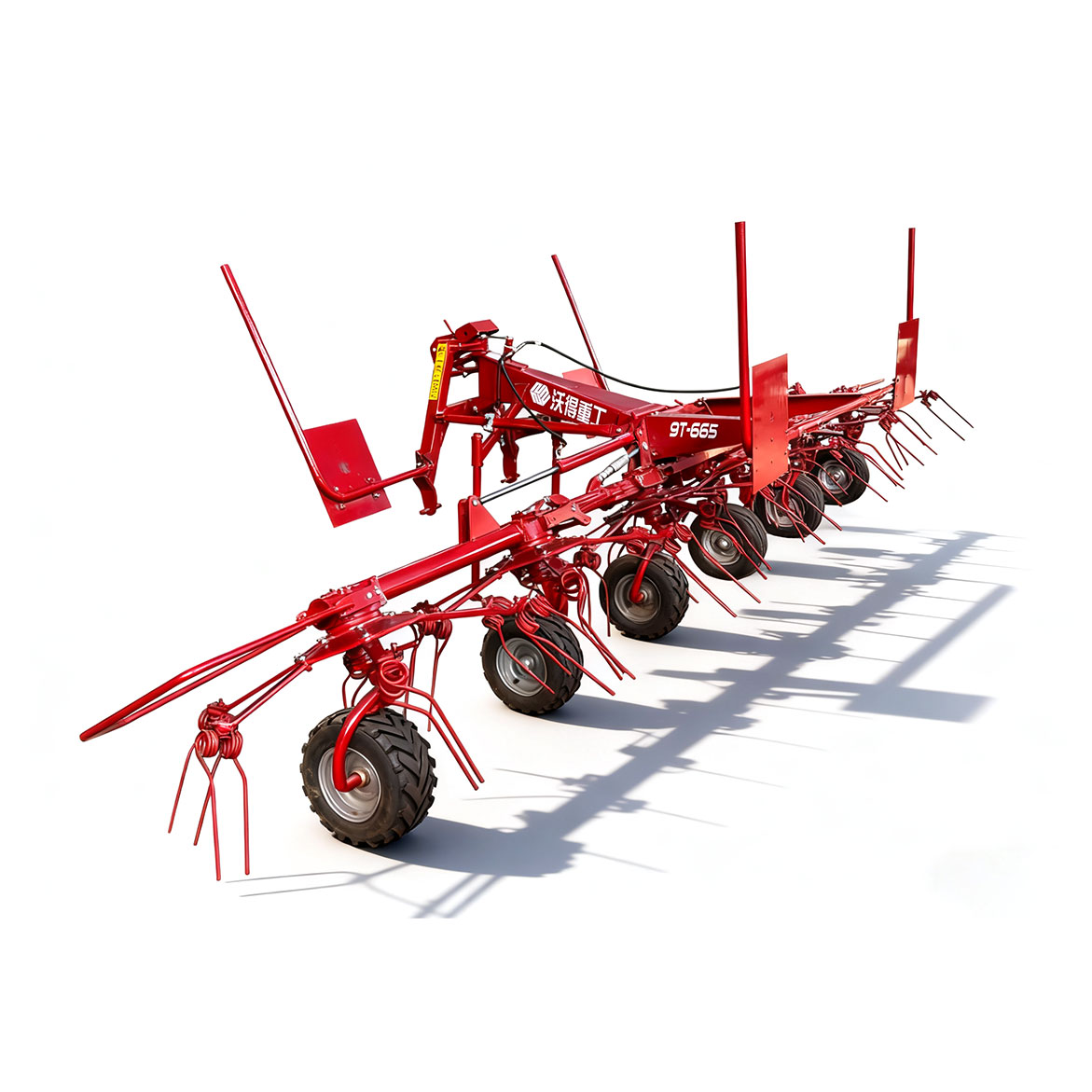

Model | 9T455 Tedder | 9T555 Tedder | 9T665 Tedder |
Drive mode | Tractor pulling/PTO output/540r/min | Tractor pulling/PTO output/540r/min | Tractor pulling/PTO output/540r/min |
Suspension type | Rear | Rear | Rear |
Installation type | Three point opening and closing | Three point opening and closing | Three point opening and closing |
Minimum traction force (KW) | ≥25KW(≥35hp) | ≥25KW(≥35hp) | ≥35KW(≥48hp) |
Working range(mm) | 4500 | 5500 | 6600 |
Working speed (km/h) | 5-20 | 5-20 | 5-20 |
Working dimensions (mm) | 2200*4500*1800 | 2200*5500*1800 | 2200*6600*1800 |
Transportation dimensions (mm) | 2200*2650*2300 | 2200*2650*2300 | 2200*2950*2300 |
Machine weight (KG) | 465 | 500 | 700 |
Turntable diameter (mm) | 1480 | 1480 | 1480 |
Number of turntables | 4 | 4 | 6 |
Quantity of teeth and stems for each turntable | 6 | 6 | 6 |
Tire specifications | 16*6.50-8 | 16*6.50-8 | 16*6.50-8 |
Hydraulic folding | yes | yes | yes |
center height adjustment | Adjustable | Adjustable | Adjustable |
