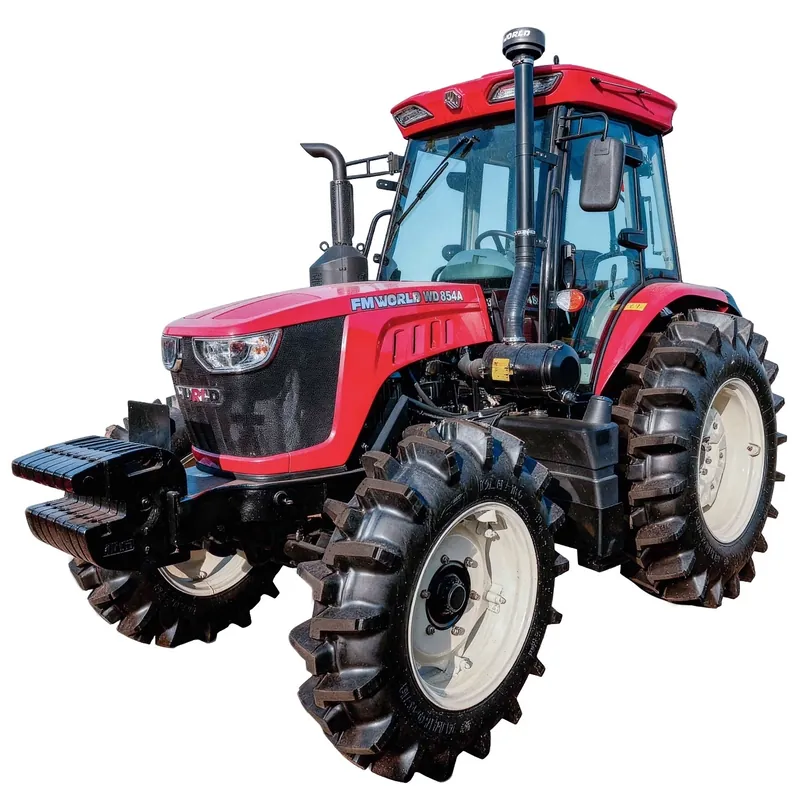

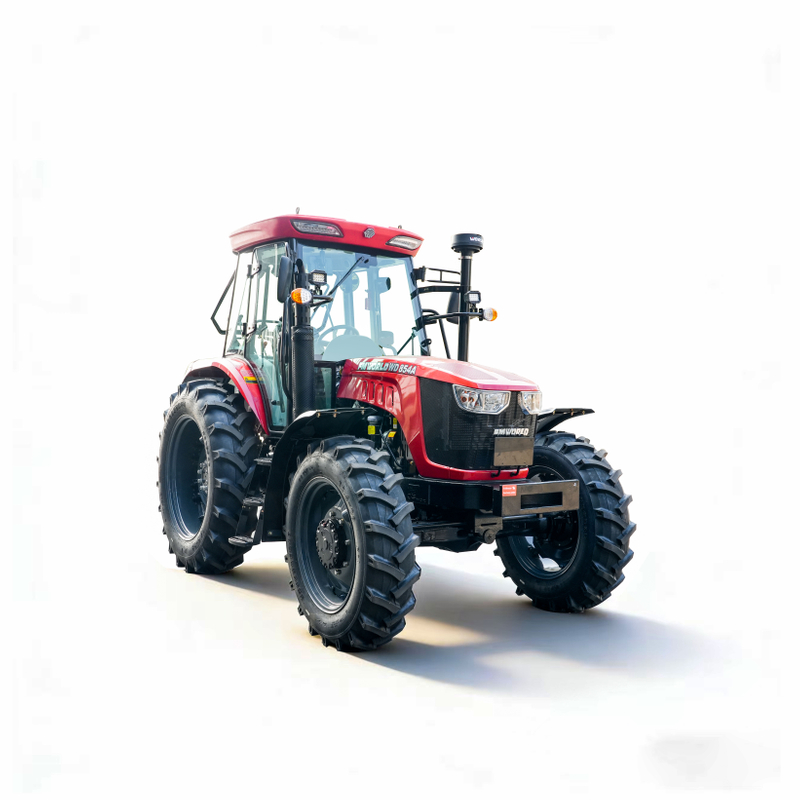

A Series (WD854A)
FMWORLD
| Availability: | |
|---|---|
| Quantity: | |
| Model | WD854A | WD904A | WD1004A | |
| Structure | 4*4 | 4*4 | 4*4 | |
| Engine | Engine Power@speed(HP) | 85 | 90 | 100 |
| Engine Type | 4 Cylinder, Inline, Vertical, Water-cooled, diesel engine | |||
| Fuel Tank Capacity(L) | 170 | |||
| Battery | 12V | |||
| Air Cleaner | Dry | |||
| Transmission | Gears | Shuttle 24F + 24R with Creeper | ||
| Clutch | 13-inch double-acting | |||
| Brake | Mechanical disc | |||
| Differential Lock | Pin Type, Mechanical | |||
| PTO System | Direction of turning | Clockwise,viewed from tractor rear | ||
| Diameter of PTO Shaft(mm) | 35 | |||
| PTO Speeds(rpm) | 540/760/1000 | |||
| Hydraulic system | 3 Point Hitch | Category III &II | ||
| Control System | Position, Draft, Float | |||
| Rear Auxiliary Remote Valves | 2 groups | |||
| Lifting Capacity(KG) | >=2190 | >=2350 | >=2620 | |
| Other Parameters | Steering | Hydraulic Power Steering | ||
| Dimension(mm) Canopy | 4642*2050*2850 | |||
| Ground Clearance(mm) | 530 | |||
| Tires(F/R) | 13.6-24/16.9-34 | |||
| Wheel Base (mm) | 2250 | |||
| Wheel Track (F/R)(mm) | 1490,1555/1608,1500,1700 | |||
| Ballast Weight Front/Rear(kg) | 320/180 | |||
| Min Operation Weight(kg) | 3385 | |||
