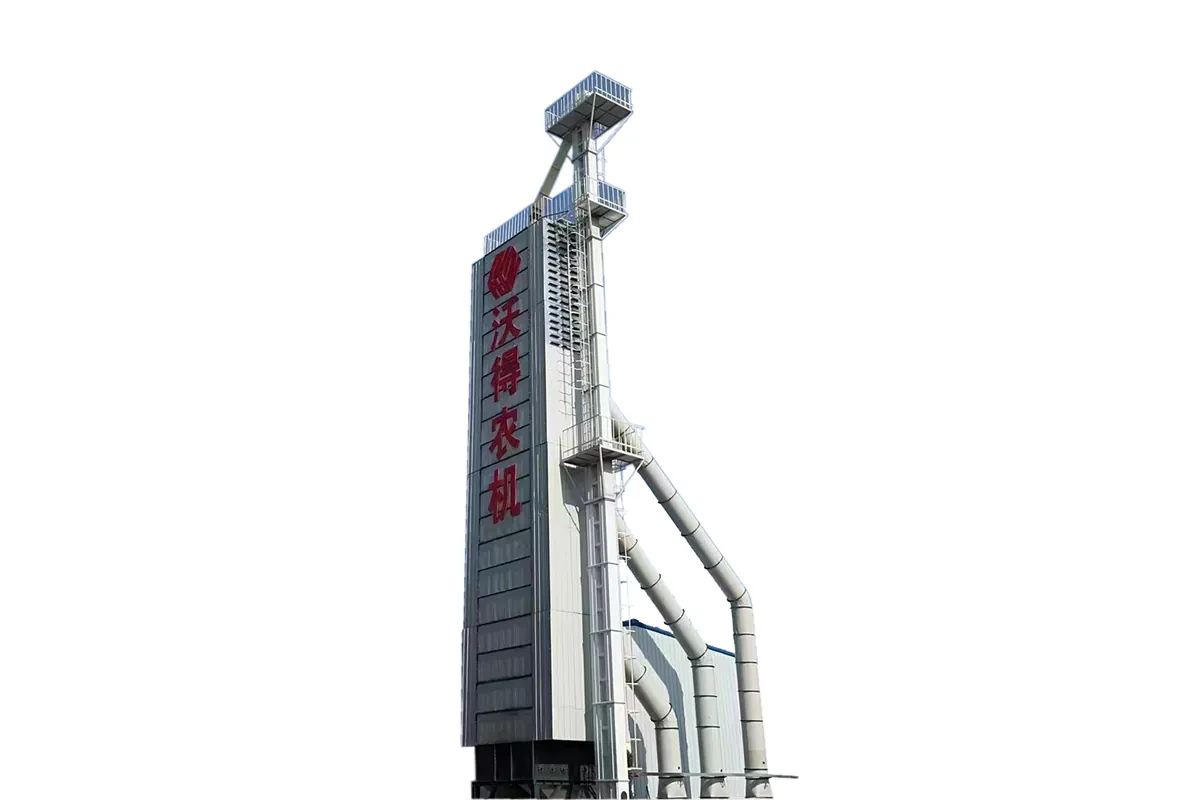

FMWORLD Tower Dryer - 5H500

FMWORLD Grain Tower Dryer, researched and developed by FMWORLD researching team. There are 6 models in 5H series including 5H100, 5H200, 5H300, 5H500, 5H800, 5H1000. Most of crops could be dryed in our excellent machines and customisation is optional when you need.
  • 5H500

  • FMWORLD

Availability:
Quantity:
Model5H-500L
Structure   typeContinuous
Drying methodindirect heating
Dryer body   dimensions (length x width x height) (mm)4320*7040*31950
Daily   processing capacity (t/d)800
Precipitation   range (%)≥14(corn)≥5(rice)≥8(wheat, soybean)
Number of   drying sections (units)3/4500mm
Number of slow   Su sections (pieces)3
Cooling   section height (mm)2700
Dryer net   volume (m³)200
Hot air   temperature range (°C)30-140
No. 1 hot air   blower model nameCentrifugal fan
No. 1 hot air   blower wind pressure (Pa)2200-2600
Flow rate of   No. 1 hot air blower (m3/h)75000
No. 1 hot air   blower motor power (kW)55
No. 2 hot air   blower model nameCentrifugal fan
No. 2 hot air   fan wind pressure (Pa)2200-2600
Flow rate of   No. 2 hot air blower (m³/h)75000
No. 2 hot air   blower motor power (kW)55
No. 3 hot air   blower model nameCentrifugal fan
No. 3 hot air   blower wind pressure (Pa)2200-2600
Flow rate of   No. 3 hot air blower (m³/h)75000
No. 3 hot air   blower motor power (kW)55
Cooling fan   model nameCentrifugal fan
Air cooler   pressure (Pa)1100-1650
Cooler flow   (m³/h)25000-40000
Cooling fan   motor power (kW)22
Hot air stove   model name/fuel typeJLR-10/coal, biomass   pellets
Hot air stove   thermal power (heat output) (kJ/h (Kcal/h))25000000 (6000000)
Hot blast   furnace smoke fan model nameY5-47   No.11.D/Centrifugal fan
Hot blast   furnace smoke fan motor power (kW)45
